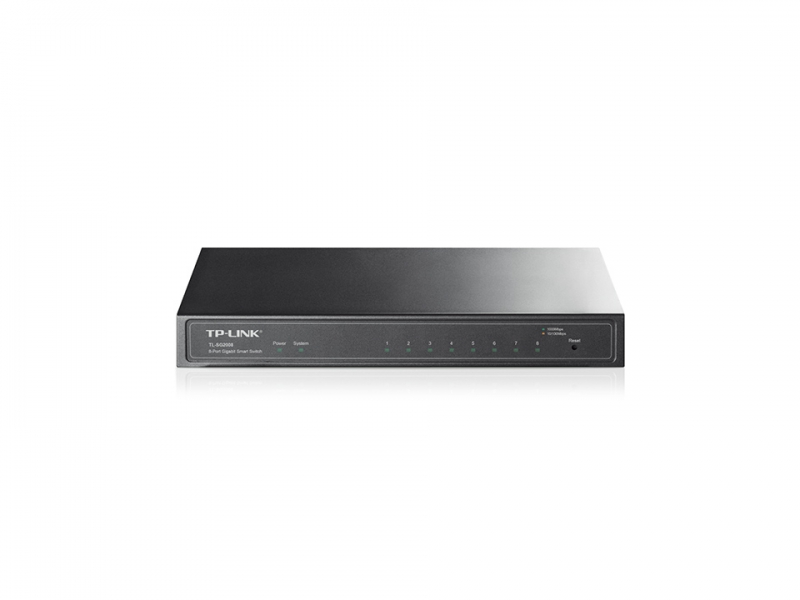

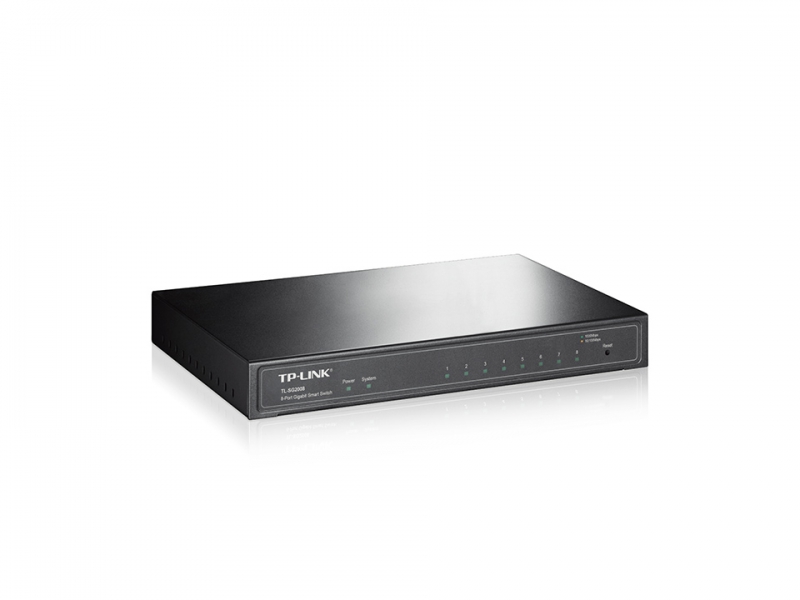

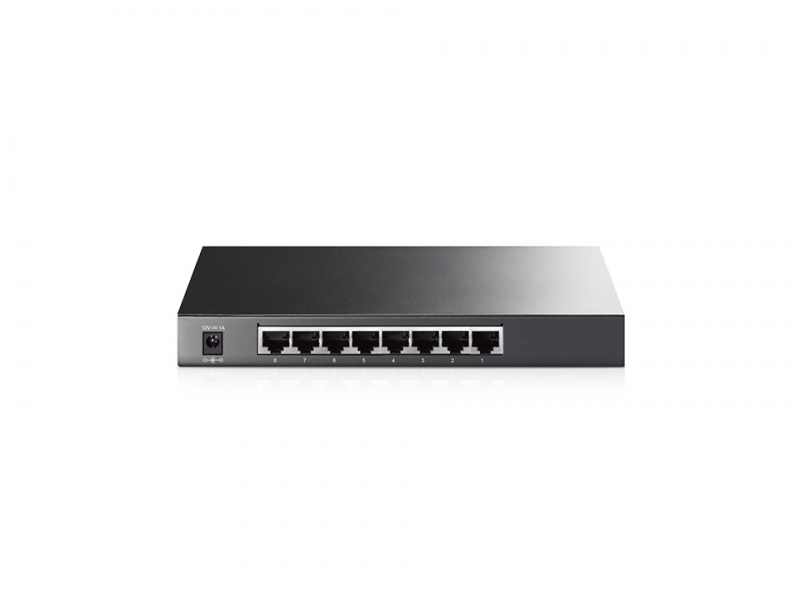

TP-Link TL-SG2008 8-Port Gigabit Smart Switch
$166.49 inc GST
TP-Link TL-SG2008 8-Port Gigabit Smart Switch with Port Security, Storm Control, IGMP Snooping, and Omada SDN integration.
Out of stock
Warehouse availabilityLIVE
QLD—
NSW—
VIC—
WA—
SA—
TAS—
ACT—
NT—
Call for corporate/edu qty purchases
Description
Weight & dimensions
| Height | 26 mm |
|---|---|
| Width | 209 mm |
| Depth | 126 mm |
Power
| AC input frequency | 60 Hz |
|---|---|
| DC input voltage | 12 V |
| Power consumption max | 6.42 W |
| AC input voltage | 100 – 240 V |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity | 8 |
|---|---|
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Power connector | DC-in jack |
Network
| Quality of Service QoS support | Y |
|---|---|
| Jumbo frames support | Y |
| Auto-negotiation | Y |
| Jumbo frames | 9216 |
| Networking standards | IEEE 802.1Q,IEEE 802.1p,IEEE 802.1s,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3i,IEEE 802.3u,IEEE 802.3x |
| 10G support | N |
| Copper ethernet cabling technology | 10BASE-T,100BASE-TX,1000BASE-T |
| Spanning tree protocol | Y |
| Cable types supported | Cat3,Cat4,Cat5,Cat5e |
| Port mirroring | Y |
| VLAN support | Y |
| Virtual LAN features | Voice VLAN |
| Link aggregation | Y |
| Broadcast storm control | Y |
| Rate limiting | Y |
Security
| Access Control List ACL | Y |
|---|---|
| IGMP snooping | Y |
| SSHSSL support | Y |
Data transmission
| MAC address table | 8000 entries |
|---|---|
| Switching capacity | 16 Gbit/s |
| Forwarding rate | 11.9 Mpps |
Management features
| Switch type | Managed |
|---|---|
| Web-based management | Y |
| MIB support | Y |
Other features
| Flow control support | Y |
|---|---|
| Number of VLANs | 512 |
Power over Ethernet PoE
| Power over Ethernet PoE | N |
|---|
Operational conditions
| Operating temperature T-T | 0 – 40 °C |
|---|---|
| Storage temperature T-T | -40 – 70 °C |
| Operating relative humidity H-H | 10 – 90% |
| Storage relative humidity H-H | 5 – 90% |
Design
| Product colour | Black |
|---|
Performance
| Fanless | Y |
|---|---|
| Auto MDIMDI-X | Y |
Certificates
| Certification | CE, FCC, RoHS |
|---|
Multicast features
| Multicast support | Y |
|---|
Features
| Security algorithms | SSH,SSH-2,SSL/TLS |
|---|---|
| LED indicators | Y |
| Input current | 1 A |
Packaging data
| User guide | Y |
|---|
Packaging content
| Cables included | AC |
|---|
Additional information
| Weight | 0.4 kg |
|---|---|
| Dimensions | 20.9 × 12.6 × 2.6 cm |
| Ports | |
| Switching Capacity | |
| Packet Forwarding Rate | |
| Mac Address Table | |
| Dimensions | |
| Power Consumption Max | |
| Standards And Protocols | ieee 802.3i, ieee 802.3u, ieee 802.3ab, ieee 802.3z, ieee 802.3x, ieee 802.1q, ieee 802.1p |
| Cable Management | |
| Brand | |
| Mpn | |
| Gtin |
