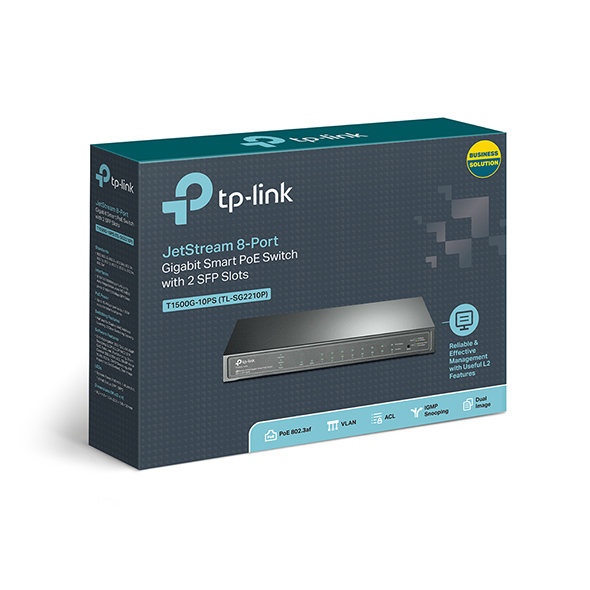

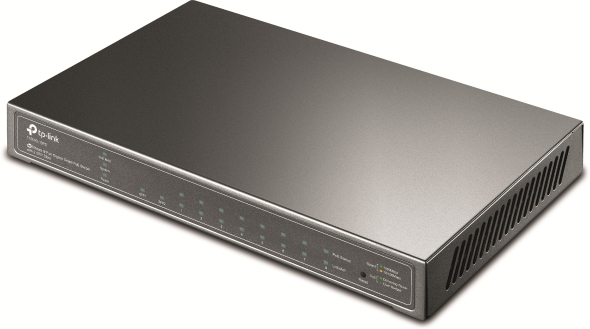

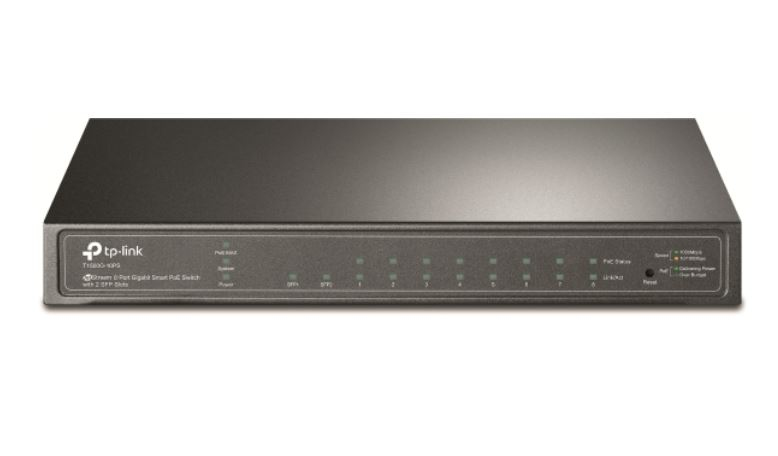

TP-Link TL-SG2210P 8-Port Gigabit Smart PoE Switch with 2 SFP Slots
$209.00
TP-Link TL-SG2210P 8-Port Gigabit Smart PoE Switch with 2 SFP Slots, L2/L3/L4 QoS, IGMP Snooping, and 53W PoE budget.
16 in stock
Description
Weight & dimensions
| Depth | 126 mm |
|---|---|
| Height | 26 mm |
| Width | 209 mm |
Power
| AC input frequency | 50/60 Hz |
|---|---|
| Power supply included | Y |
| Power consumption typical | 53 W |
| AC input voltage | 100 – 240 V |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity | 8 |
|---|---|
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP module slots quantity | 2 |
Network
| Networking standards | IEEE 802.1D,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3af,IEEE 802.3i,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z |
|---|---|
| Jumbo frames | 9000 |
| Quality of Service QoS support | Y |
| Auto-negotiation | Y |
| Jumbo frames support | Y |
| 10G support | N |
| Spanning tree protocol | Y |
| Cable types supported | Cat3,Cat4,Cat5,Cat5e |
| Port mirroring | Y |
| VLAN support | Y |
| Link aggregation | Y |
| Broadcast storm control | Y |
| Rate limiting | Y |
Security
| Access Control List ACL | Y |
|---|---|
| IGMP snooping | Y |
| Static port security | Y |
| SSHSSL support | Y |
| BPDU filteringprotection | Y |
| IP-MAC-Port binding | Y |
| Authentication | MAC-based authentication, Port-based authentication |
Data transmission
| Switching capacity | 20 Gbit/s |
|---|---|
| Forwarding rate | 14.9 Mpps |
| MAC address table | 8000 entries |
Management features
| Switch type | Managed |
|---|---|
| Switch layer | L2/L4 |
| Web-based management | Y |
| ARP inspection | Y |
Protocols
| IPv4 & IPv6 features | Dual stack IPv4/IPv6 |
|---|
Other features
| Flow control support | Y |
|---|
Power over Ethernet PoE
| Power over Ethernet PoE | Y |
|---|
Operational conditions
| Operating temperature T-T | 0 – 40 °C |
|---|---|
| Storage temperature T-T | -40 – 70 °C |
| Operating relative humidity H-H | 10 – 90% |
| Storage relative humidity H-H | 5 – 90% |
Design
| Product colour | Black |
|---|
Performance
| Auto MDI/MDI-X | Y |
|---|
Packaging content
| Quick start guide | Y |
|---|
Certificates
| Certification | CE, FCC, RoHS |
|---|
Multicast features
| Multicast support | Y |
|---|
Features
| Firmware upgradeable | Y |
|---|---|
| LED indicators | Y |
Additional information
| Weight | 1.05 kg |
|---|---|
| Dimensions | 32 × 7 × 24 cm |
| Interface | 8 x 10/100/1000 mbps rj45 ports (auto negotiation/auto mdi/mdix), 2 x gigabit sfp slots |
