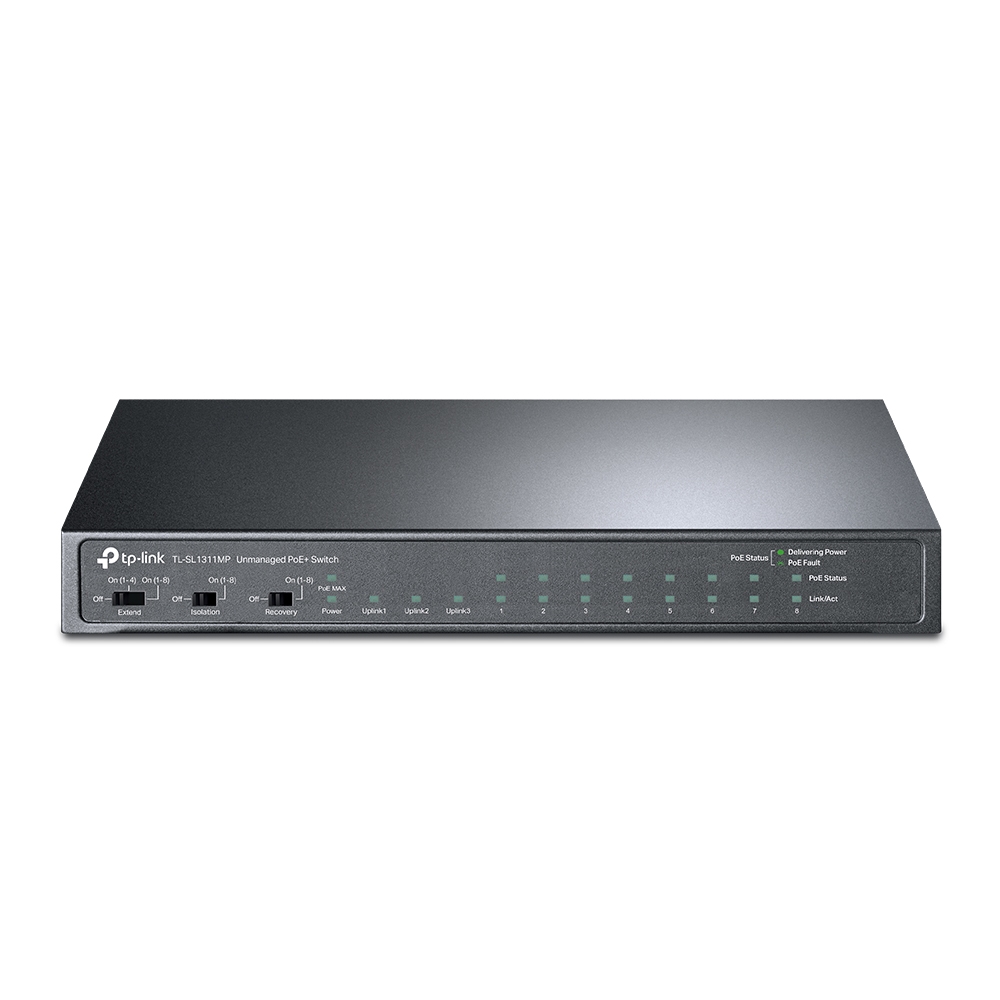

TP-Link TL-SL1311MP 8-Port 10/100Mbps + 3-Port Gigabit Desktop Switch with 8-Port PoE+
$159.00
TP-Link TL-SL1311MP 8-Port 10/100Mbps + 3-Port Gigabit Desktop Switch with 8-Port PoE+, featuring 124W PoE budget, 250m Extend Mode, and Isolation Mode.
23 in stock
Description
TP-Link TL-SL1311MP 8-Port 10/100Mbps + 3-Port Gigabit Desktop Switch with 8-Port PoE+
• 8× 10/100 Mbps RJ45 Ports, 2× Gigabit RJ45 Ports, 1× Gigabit SFP Port
• 8× PoE+ ports transfer data and power on individual cables
• Works with IEEE 802.3af/at compliant PDs
• Supports PoE Power up to 30 W for each PoE port
• Supports PoE Power up to 124 W for 8 PoE ports*
• Up to 250 m data and power transmitting range under Extend Mode**
• Isolation Mode allows one-click client traffic separation for higher security and performance
• PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices
• Fanless Design reduces power consumption and works silently in its location
• Plug and play with no configuration required
HARDWARE FEATURES
| Interface | • 8× 10/100 Mbps 802.3af/at PoE+ Ports, 2× Gigabit RJ45 Ports, 1× Gigabit SFP Port • AUTO Negotiation • AUTO MDI/MDIX |
| Network Media | • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 100BASE-TX: UTP category 5, 5e cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) |
| Fan Quantity | Fanless |
| Physical Security Lock | Yes |
| External Power Supply | External Power Adapter (Output: 53.5VDC / 2.43A) |
| Packet Forwarding Rate | 5.6544 Mpps |
| PoE Ports (RJ45) | • Standard: 802.3 af/at compliant • PoE Ports: Ports 1–8 • Power Supply: 124 W |
| Mac Address Table | 2K |
| Jumbo Frame | 16 KB |
| Switching Capacity | 7.6 Gbps |
| Dimensions ( W x D x H ) | 209 × 126 × 26 mm |
| Max Power Consumption | • 5.95 W (220/50 Hz. no PD connected) • 140.92 W (220/50 Hz. with 124 W PD connected) |
| Max Heat Dissipation | • 20.29 BTU/h (no PD connected) • 480.54 BTU/h (220/50 Hz. with 124 W PD connected) |
SOFTWARE FEATURES
| Transmission Method | Store-And-Forward |
| Advanced Functions | • Compatible With IEEE 802.3af/at Compliant PDs • Extend Mode Button (Ports 1–4 and Ports 1–8, Up to 250 m PoE power supply and data transmission) • Isolation Mode |
Additional information
| Standards And Protocols | ieee 802.3i, ieee 802.3u, ieee 802.3ab, ieee 802.3z, ieee 802.3af, ieee 802.3at, ieee 802.3x |
|---|---|
| Ports | 8 x 10/100 mbps rj45 ports (poe/poe+), 2 x 10/100/1000 mbps rj45 ports, 1 x gigabit sfp port |
