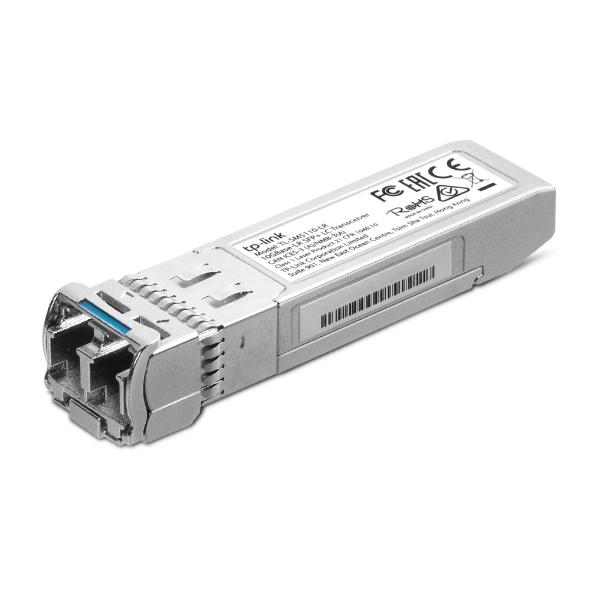

TP-Link TL-SM5110-LR 10GBase-LR SFP+ LC Transceiver
$68.18
TP-Link TL-SM5110-LR 10GBase-LR SFP+ LC Transceiver Hot-Pluggable with DDM support for up to 10KM over single-mode fiber.
13 in stock
Description
TP-Link TL-SM5110-LR 10GBase-LR SFP+ LC Transceiver Hot-Pluggable, Supports Digital Diagnostic Monitoring, SFP+ MSA Compatible, 10KM
- Single-mode SFP+ LC Transceiver
- Hot-Pluggable with maximum flexibility
- Supports Digital Diagnostic Monitoring (DDM)
- Compatible with 10G Small Form Pluggable Multi-Source Agreement (SFP+ MSA)
- Compatible with switches with 10G SFP+ ports, like JetStream TL-SG3428X, TL-SG3428XMP, and more.
Hardware Features
| DDM | Yes |
| SFP-MSA | Yes |
| Hot Swappable | Yes |
Transceiver
| Standards and Protocols | IEEE 802.3ae, TCP/IP |
| Wave Length | 1310 nm |
| Power Supply | 3.3V |
| Fiber Type | 9/125um Single-Mode |
| Max. Cable Length | 10 km |
| Data Rate | 10 Gbps |
| Port Type | LC Duplex |
| Safety & Emission | FCC, CE |
| Environment | Operating Temperature: 0–70 °C (32–158 °F) Storage Temperature: -40–85 °C ( -40–185 °F) Operating Humidity: 10–90% RH, Non-Condensing Storage Humidity: 5–90% RH, Non-Condensing |
| Product Width (W) mm | 122.5 |
| Product Depth (D) mm | 81.5 |
| Product Height (H) mm | 38.5 |
| Product Weight Kg | 0.06 |
