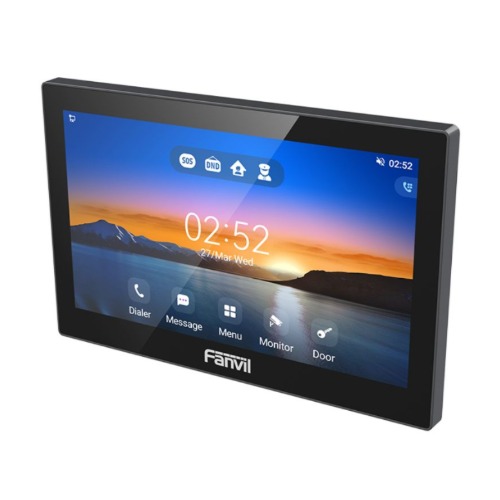

Fanvil i505W is 7-inch Android-based SIP indoor station, Wi-Fi 6 support, combines video intercom, access control, slim profile and lightweight build

Description

Fanvil i505W is a 7-inch Android-based SIP indoor station with Wi-Fi 6 support, designed for apartments, villas, hotels, and offices. It combines video intercom, access control, and smart home integration in one device, with a slim profile and lightweight build

📋 Fanvil IPF-i505W Overview

• Display: 7-inch IPS capacitive touchscreen, 1024 × 600 resolution.
• OS: Android 9.0, supports third-party app integration and secondary development.
• Audio: 2W multimedia speaker, HD voice, Acoustic Echo Cancellation (AEC), full-duplex hands-free.
• Video: H.264/H.265 decoding, resolutions up to 1080p; supports live video feeds from IP cameras.
• Connectivity: RJ45 Ethernet, dual-band Wi-Fi (2.4 GHz / 5 GHz).
• Interfaces: 8 alarm inputs, 1 short-circuit output, 1 doorbell input, RS-485 (reserved).
• Power: 12 VDC/1 A or PoE 802.3af.
• Functions: Remote door unlocking, messaging, customizable ringtones, Do Not Disturb (DND).
