Fanvil i506W SIP indoor station, large 10.1-inch IPS touchscreen, dual-band Wi-Fi, PoE support, multiple alarm inputs

Description

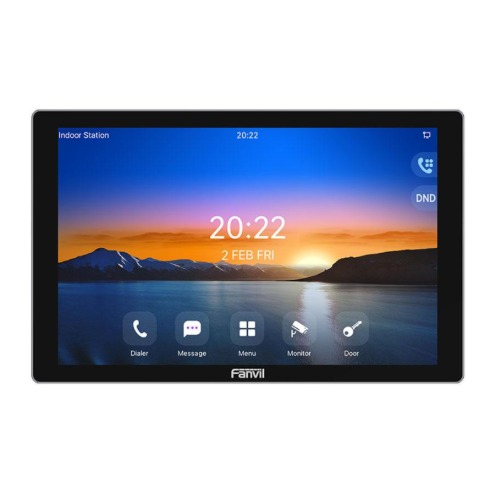

Fanvil i506W is a SIP indoor station with a large 10.1-inch IPS touchscreen (1280 × 800), dual-band Wi-Fi, PoE support, and multiple alarm inputs, designed for apartments, villas, hotels, and offices.

Fanvil i506W Overview

• Display: 10.1-inch IPS capacitive touchscreen, 1280 × 800 resolution.
• Audio: 2W multimedia speaker, HD voice, Acoustic Echo Cancellation (AEC), full-duplex hands-free.
• Video: Supports H.264/H.265 decoding, resolutions up to 1080p.
• Connectivity: RJ45 Ethernet (10/100 Mbps), dual-band Wi-Fi (2.4 GHz / 5 GHz).
• Interfaces: 8 alarm inputs, 1 short-circuit output, 1 doorbell input, RS-485 (reserved).
• Power: 12 VDC/1 A or PoE 802.3af.
• Functions: Remote door unlocking, customizable ringtones, messaging, Do Not Disturb (DND), video monitoring from IP cameras.
