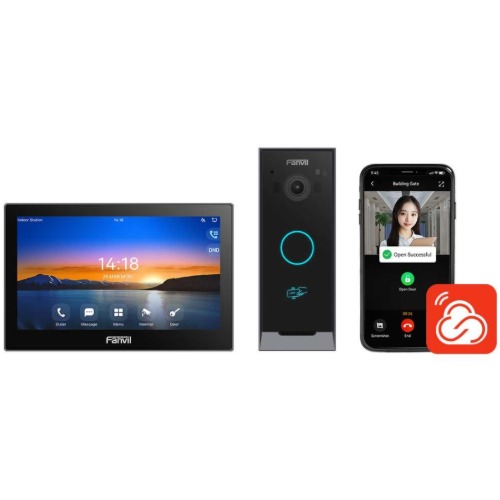

Fanvil VIK‑01 complete video intercom kit bundles the i504W, i60 video door phone, Fanvil Link mobile app, offering HD video calls, multiple access

Description

Fanvil VIK‑01 is a complete video intercom kit that bundles the i504W SIP indoor station, the i60 video door phone, and the Fanvil Link mobile app. It is designed for villas and single-family homes, offering HD video calls, remote door unlocking, and multiple access methods (IC card, BLE, DTMF, app).

Kit Components

i504W Indoor Station
7-inch capacitive touchscreen (1024 × 600)
ABS casing, wall-mounted design
2W speaker, HD audio with AEC
SIP 2.0 protocol support
Video decoding: H.264/H.265 up to 1080p
Power: 12 VDC/1 A or PoE 802.3af
Dimensions: 177.38 × 113.99 × 22.5 mm
Operating Temp: −10 °C to +50 °C

i60 Video Door Phone
2 MP CMOS camera with infrared support
Wide viewing angle: 140° FOV
Supports IC card unlocking, BLE, DTMF, remote unlock
Built-in relay, motion detection, tamper alarm
Panel Size: 50 × 130 × 30 mm
Ingress Protection: IP65, IK level protection
Operating Temp: −40 °C to +70 °C
