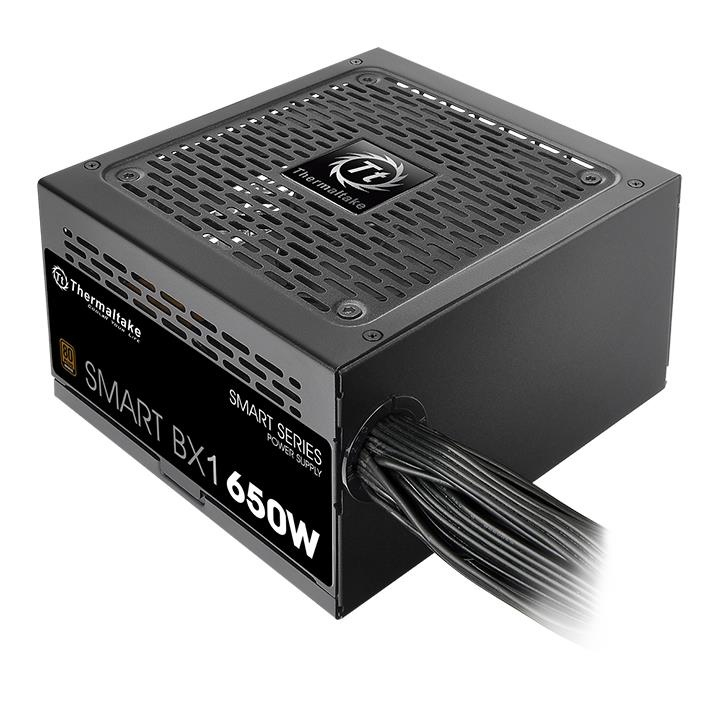

Thermaltake PS-SPD-0650NNSABA-1, Smart BX1, 650W, 80 Plus Bronze, Non-Modular, Fan: 120mm, ATX, MTBF: 100,000 Hours, 5 Year Warranty

Thermaltake PS-SPD-0650NNSABA-1, Smart BX1, 650W, 80 Plus Bronze, Non-Modular, Fan: 120mm, ATX, MTBF: 100,000 Hours, 5 Year Warranty

Thermaltake PS-SPD-0650NNSABA-1

$113.72 inc GST

1 in stock

Stock Availability (LIVE)

  • • Brisbane Warehouse ✕ Out of Stock (0)
  • • Sydney Warehouse ✓ In Stock (1)
  • • VIC Warehouse ✕ Out of Stock (0)
  • • WA Warehouse ✕ Out of Stock (0)
  • • SA Warehouse ✕ Out of Stock (0)

Delays may be experienced from Sydney Warehouse as warehouse is currently changing location.

Call for corporate/edu qty purchases

Same Day Shipping

Order within --:-- for same day dispatch!

Shipping cutoff time: --:--

SKU: PS-SPD-0650NNSABA-1 Categories: , , , Brand:

Additional information

Weight 3 kg
Warranty

Brand

Weight dimensions
0 Width,150 mm
1 Depth,140 mm
2 Height,86 mm
Power
0 AC input frequency,50/60 Hz
1 Total power,650 W
2 Combined power 5V,110 W
3 Combined power -12V,6 W
4 Combined power 5Vsb,12.5 W
5 Max output current 3.3V,23 A
6 Max output current 12V,48 A
7 Power Factor Correction PFC type,Active
8 Max output current 5V,17 A
9 Combined power 3.3V,110 W
10 Max output current -12V,0.5 A
11 Combined power 12V,576 W
12 Max output current 5Vsb,2.5 A
13 Peak power,80 W
14 AC input voltage,100 - 240 V
Ports interfaces
0 Motherboard power connector,24-pin ATX
1 CPU power connector 44 pin,Y
2 Motherboard power cable length,60 cm
3 CPU power cable length,1 mm
4 PCI Express connector,Y
5 SATA power cable length,150,500 mm
6 Peripheral Molex power cable length,150,500 mm
7 PCI Express power connectors 62 pin,2
8 PCI Express power cable length,50 cm
9 Number of SATA power connectors,6
Internal IO
0 Peripheral Molex power connectors 4-pin,4
Endurance
0 Mean time between failures MTBF,100000 h
Other features
0 Cabling type,Non-Modular
Mouse
0 Onoff switch,Y
Operational conditions
0 Storage temperature T-T,-40 - 55 °C
1 Operating relative humidity H-H,20 - 85%
2 Storage relative humidity H-H,10 - 95%
3 Operating temperature T-T,5 - 40 °C
Design
0 Product colour,Black
1 Cooling type,Active
2 Number of fans,1 fan(s)
Performance
0 Purpose,PC
1 EPS version,2.92
2 80 PLUS certification,80 PLUS Bronze
3 Power supply unit PSU form factor,ATX
4 ATX version,2.3
Features
0 Fan diameter,12 cm
1 Input current,12 A
Packaging content
0 Cables included,CPU, PCIe, Peripheral (Molex), Peripheral (Molex) to SATA 3.3, SATA
