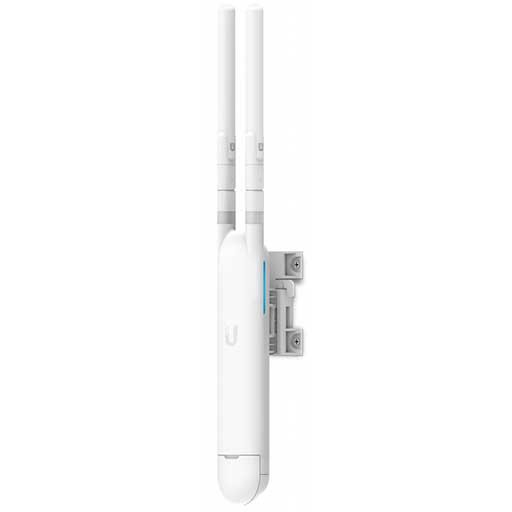

Ubiquiti UAP-AC-M, UniFi AP AC Outdoor Mesh 1167Mbps, Dual-Omni Antennas, 1 Year

Ubiquity UAP-AC-M, UniFi AP AC Outdoor Mesh 1167Mbps, Dual-Omni Antennas, 1 Year

FEATURES :-

Compact Form Factor

The UniFi AC Mesh AP is designed to discreetly integrate into virtually any environment.

Weather-Resistant Enclosure

The UniFi AC Mesh AP can be used indoors or outdoors.

LED Indicator

Unique provisioning LED provides administrator location tracking and alerts for each device.

Versatile Mounting

The UniFi AC Mesh AP can be mounted on a wall, pole, or fast-mount of a Ubiquiti high-gain antenna. (All accessories are included)

Multiple Power Options

The UniFi AC Mesh AP is compatible with 802.3af PoE Alternative A and 24V passive PoE. You can power it with an 802.3af Alternative A compatible switch or the included Gigabit PoE adapter.

Antenna Options

Use the included omni antennas, or use the included fast-mount adapter to install the AP on an optional connectorized antenna for expanded range coverage and customized pattern shaping.

UniFi Controller

Packed with Features
Use the UniFi Controller to provision thousands of UniFi APs, map out networks, quickly manage system traffic, and provision additional UniFi APs.

RF Map
Use the RF map to monitor and analyze radio frequencies for optimal AP placement, configuration, and troubleshooting.

Powerful RF Performance Features
Advanced RF performance and configuration features include spectral analysis, airtime fairness, and band steering.

Detailed Analytics
Use the configurable reporting and analytics to manage large user populations and expedite troubleshooting.

Wireless Uplink
Wireless Uplink functionality enables wireless connectivity between APs for extended range. One wired UniFi AP uplink supports up to four wireless downlinks on a single operating band, allowing wireless adoption of devices in their default state and real-time changes to network topology.
For devices that support Plug & Play Mesh, this functionality is extended to allow multi-hop wireless uplink - so wirelessly uplinked APs can support uplink to other wirelessly uplinked APs.

Guest Portal/Hotspot Support
Easy customization options for Guest Portals include authentication, Hotspot setup, and the ability to use your own external portal server. Use UniFi's rate limiting for your Guest Portal/Hotspot package offerings. Apply different bandwidth rates (download/upload), limit total data usage, and limit duration of use.
All UniFi APs include Hotspot functionality:
• Built-in support for billing integration using major credit cards.
• Built-in support for voucher-based authentication.
• Built-in Hotspot Manager for voucher creation, guest management, and payment refund.
• Full customization and branding of Hotspot portal pages.

Multi-Site Management
A single cloud-based UniFi Controller can manage multiple sites: multiple, distributed deployments and multi-tenancy for managed service providers. Each site is logically separated and has its own configuration, maps, statistics, guest portal, and admin read/write and read-only accounts.

WLAN Groups
Manage flexible configurations of large deployments. Create multiple WLAN groups and assign them to an AP's radio.

SPECIFICATIONS :-

Networking Interface	1 x 10/100/1000 Ethernet Ports
Buttons	Reset
Power Method	24 V Passive PoE (Pairs 4, 5+; 7, 8 Return) 802.3af Alternative A (Pairs 1, 2+; 3, 6 Return) (Supported Voltage Range: 44 to 57 VDC)
Power Supply	24 V, 0.5 A PoE Gigabit Adapter (Included)
Power Save	Supported
Maximum Power Consumption	8.5 W
Maximum TX Power	2.4 GHz: 20 dBm 5 GHz: 20 dBm
Antennas	2 x External Dual-Band Antennas 2.4 GHz: 3 dBi 5 GHz: 4 dBi
Wi-Fi Standards	802.11a/b/g/n/ac
Wireless Security	WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)
BSSID	Up to Four per Radio
Mounting	Wall/Pole/Fast-Mount (Kits Included)
Temperature & Humidity	Operating Temperature: -22 to 158°F / -30 to 70°C Operating Humidity: 5 to 95% non-condensing
Certifications	CE, FCC, IC
Traffic Management and QoS	VLAN 802.1Q Advanced QoS Per-User Rate Limiting Guest Traffic Isolation Supported WMM Voice, Video, Best Effort, and Background Concurrent Clients 200+
Supported Data Rates	802.11ac 6.5 Mbps to 867 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80) 802.11n 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) 802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps 802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps 802.11b 1, 2, 5.5, 11 Mbps
Dimensions	13.90 x 1.81 x 1.35" / 353.0 x 46.0 x 34.4 mm
Weight	5.36 oz / 152 g

Packaging Info
Package Weight	1.45 lb
Box Dimensions (LxWxH)	9.8 x 4.4 x 3.4"
