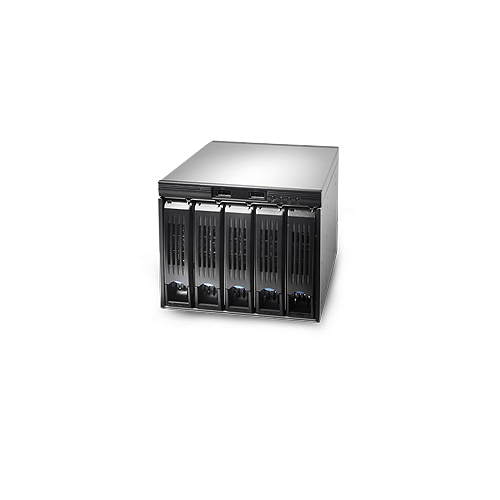

Chenbro SK33502 5-bay 3.5′ HDD Enclosure with 12Gb/s SAS & SATA Backplane

Chenbro SK33502 5-bay 3.5' HDD Enclosure with 12Gb/s SAS & SATA Backplane

SK33502 is designed with standard mounting holes for converting 3 x 5.25' drive bays into 5 x 3.5' SATA hot-swap hard drive bays.

Features & Benefits
Fits chassis with three 5.25' drive bays

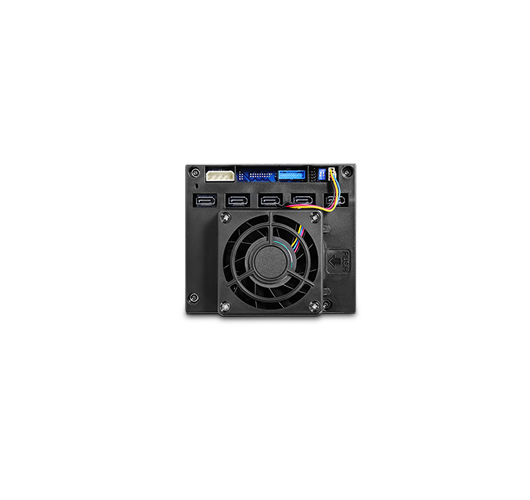

Back-mounted 80mm fan to deliver optimized cooling performance
Two front access USB ports
HDD failure and activity indicators on each hot-swap drive carrier
Supports inrush current control for drive hot-swapping
Alternative HDD activity and failure single input sources
Built-in temperature sensor and overheat warning system

Specifications
Dimensions (D x W x H) 218.5 x 146.0 x 127.3 (mm)
8.61' x 5.75' x 5.01'
Drive Bay 5 x 3.5' HDD Tray
Indicator 1 x Power Status
1 x HDD Status
System Security 1 x System Alarm
Front Control Alarm Mute
2 x USB3.0
Cooling Fan 80 x 32 (1)
Material SGCC
Net Weight 2.23 kg
Backplane 12Gbps SAS/SATA
Connector (To Drive) 5 x SFF8680
Connector (To Host) 5 x SATA 7pin
Package Cotents 1 x SK33502
5 x 700 mm SATA Cable
1 x 600 mm Signal Cable

Compatible Chassis
• RM31300 RM41300 RM42200 RM42300
• SR105 SR107 SR209 SR105 Plus SR209 Plus SR107 Plus
