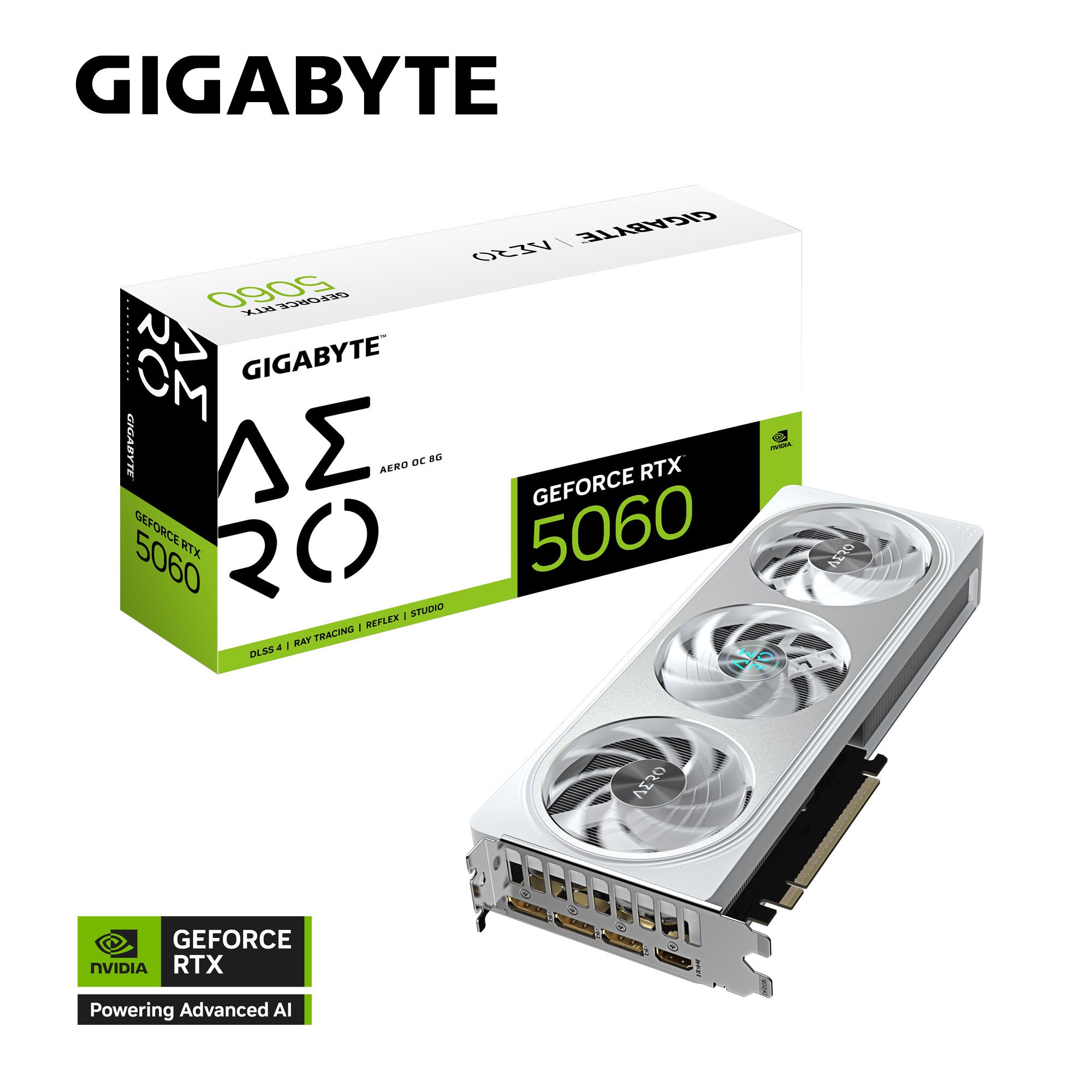

Gigabyte GeForce RTX™ 5060 AERO OC 8G, 2595 MHz, CUDA 3840, 28 Gbps, GDDR7, 128 bit, PCI-E 5.0, PSU 500W, DisplayPort 2.1b *3 HDMI 2.1b x1

Gigabyte GeForce RTX™ 5060 AERO OC 8G, 2595 MHz, CUDA 3840, 28 Gbps, GDDR7, 128 bit, PCI-E 5.0, PSU 500W, DisplayPort 2.1b *3 HDMI 2.1b x1

SPECIFICATION

Graphics Processing
GeForce RTX™ 5060

Core Clock

CUDA® Cores
3840

Memory Clock
28 Gbps

Memory Size
8 GB

Memory Type
GDDR7

Memory Bus
128 bit

Card Bus
PCI-E 5.0

Digital max resolution
7680x4320

Multi-view
4

Card size
L=281 W=117 H=40

PCB Form
ATX

DirectX
DirectX 12 API

OpenGL
OpenGL 4.6

Recommended PSU
500W

Power Connectors
8 pin*1

Output
DisplayPort 2.1b x3
HDMI 2.1b x1

FEATURES
Powered by the NVIDIA Blackwell architecture and DLSS 4
Powered by GeForce RTX™ 5060
Integrated with 8GB GDDR7 128bit memory interface
WINDFORCE cooling system
Hawk fan
Server-grade Thermal conductive gel
RGB Lighting
Dual BIOS (Performance / Silent)
Reinforced structure

NVIDIA Blackwell Architecture
The Ultimate Platform for Gamers and Creators

Fifth-Gen Tensor Cores
Max AI performance with FP4 and DLSS 4

New Streaming Multiprocessors
Optimized for neural shaders

Fourth-Gen Ray Tracing Cores
Built for Mega Geometry

WINDFORCE COOLING SYSTEM
The WINDFORCE cooling system delivers exceptional thermal performance through a combination of cutting-edge technologies. It features server-grade thermal conductive gel, innovative Hawk fans with alternate spinning, composite copper heat pipes, a copper plate, 3D active fans, and screen cooling.

ASTONISHING EXTERIOR DESIGN
Drawing inspiration from water, the back panel's ripples evoke flowing water, with mirrored, frosted, and light elements reflecting the water's shimmering surface. Metal craftsmanship refines the texture, while teal and iridescent hues accentuate the serene lake. The fan's rotation creates expanding ripples, infusing natural movement into the details.

RGB LIGHTING
With 16.7M customizable color options and numerous lighting effects, you can choose any lighting effect or synchronize with other devices in GIGABYTE CONTROL CENTER.

EXCELLENCE IN ESSENTIAL

REINFORCED STRUCTURE
The reinforced metal backplate, securely fastened to the I/O bracket, provides exceptional structural integrity.
