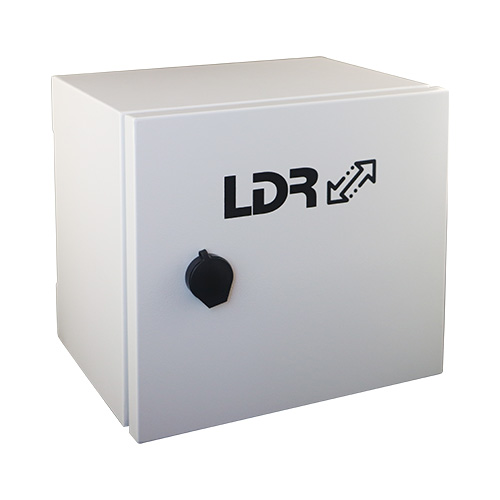

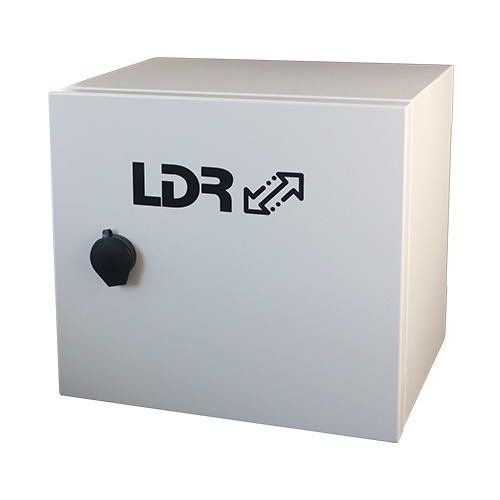

LDR Outdoor Hub, PoE Switch, Waterproof Box, IP55, Max POE 30W, 8 Port PoE, 2 SFP Ports, AC220V Main Power Input,120W DC52V, 260x280x220mm, White

LDR Outdoor PoE Switch, IP55

SKU: RCLDR-OD-QB2082SPG

Description:
RCLDR-OD-QB2082SPG is an outdoor PoE switch. It is integrated of PoE switch, air breaker, lightning arrester etc. It has IP55 protection grade, can be for outdoor using.
It can be applied for surveillance monitoring, forest monitoring, etc.

Data Sheet: Click Here
User Manual: Click Here

Key Features
• 1* Fan Included
• Load Capacity : 70kg
• Power Module: AC220V mains power input, 120W DC52V power module inside.
• Circuit breaker: 2 Protected Poles, 10A Rated Current
• Surge Protective Devices (SPD) : 2P AC220V 20KA
• PoE Switch supports 6KV surge protection, 6KV contact / 8KV air ESD protection.
• Come with 8*10/100/1000M POE downlink ports , 2*1000M SFP uplink ports.
•The maximum PoE power of single port is 30W, and the maximum PoE power of the whole machine is 115W.
•Provides three modes of VLAN to adapt to various complex environments.
•The box adopts waterproof (protection level IP55), anti-rust treatment, suitable for long time outdoor use
•Supports PoE Auto-check function, which is specially designed to solve the problems of equipment frozen. It can automatically detect the frozen PD equipment and restart the ports’ output of PSE, and restart the PD device. It greatly reduces the maintenance difficulty of engineering.
• Length: 260(H) *280(W) *220(D)mm,
• Net-weight: 8kg
