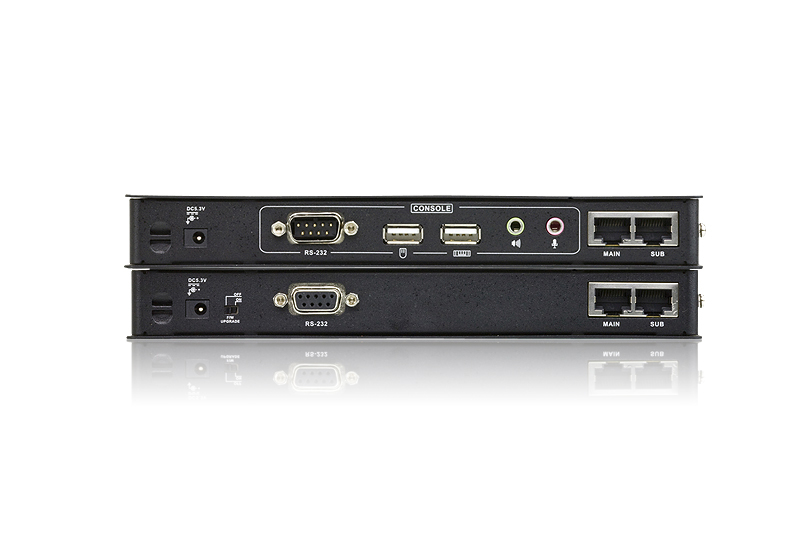

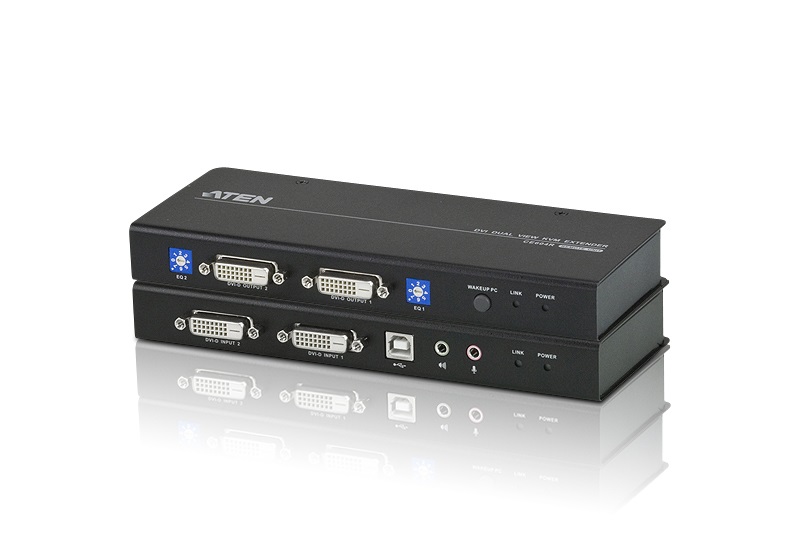

Aten DVI Dual View KVM Extender with Audio, RS232, EDID mode support, Sun/Mac KB/MS support

•Local and Remote Units connect at distances up to 60 m using two Cat 5e cables
•Transmit speaker, keyboard, mouse, DDC and one DVI via one Cat5 cable; RS-232, microphone and another DVI by adding a second Cat 5e cable
•Supports Dual View video source transmission (one PC with two video output ports)
•Audio Enabled – supports stereo speakers and microphone
•Supports Real DDC bypass and ATEN default EDID technology – set up various confi gurations via hotkeys
•Supports PC wakeup function via one pushbutton or hotkey
•RS-232 serial channel – connect to a serial terminal, or serial devices such as touchscreens and barcode scanners (Baud Rate up to 9600 bps)
•Compatible with other ATEN Dual View KVM devices, such as CS1642A/ CS1644A and CS1762A/CS1764A
•Superior video quality – up to 1920 x 1200 @ 60 Hz at 30 m; 1024 x 768 @ 60 Hz at 60 m
•Manual compensation control to adjust video signal quality in order to compensate for distance
•Built-in 8KV/15KV ESD protection (Contact voltage 8KV; Air voltage 15KV) and 2KV surge protection
