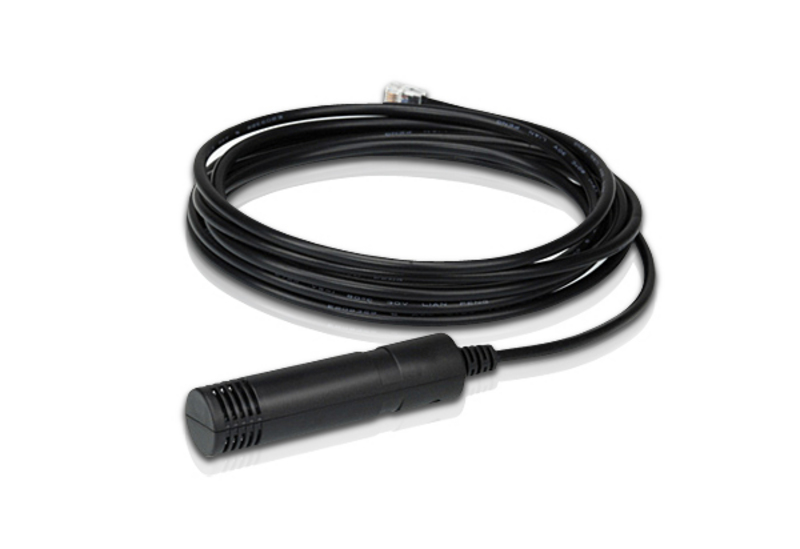

Aten Differential Pressure and Temerature Sensor

For environmental monitoring and management, ATEN provides sensor probes that work in tandem with the Power Distribution Units, which enable you to get readings of Differential Pressure & Temperature. Environmental conditions can be monitored with alarms according to customizable minimum/maximum thresholds set for temperature and humidity.

* The Sensor is an optional accessory and you can use the ATEN PDU without environmental sensors. However, if you want to have complete energy management of your data center with the full use of ATEN solutions, a sensor installation is required.

Measurement range: -19-60°C (Temperature); +-500 Pa (Pressure )
Compact design – built in 3 m cable
High sensitivity
Easy operation

Connectors RJ11-4P4C
Measurement
Range Temperature: -19-60°C
Pressure: +-500 Pa
Accuracy Temperature: +-1°C (0-40°C)
Pressure: +-1 % (15-35°C)
T.C: -0.1 Pa/°C
Power Consumption 5 VDC (Max), 3mA(Typical)
Environmental
Operating Temperature 0-60°C, <95% RH Non-condense Storage Temperature 0-40°C Humidity < 90% RH Physical Properties Housing Plastic Weight 0.09 kg Cable Length 3 m Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
