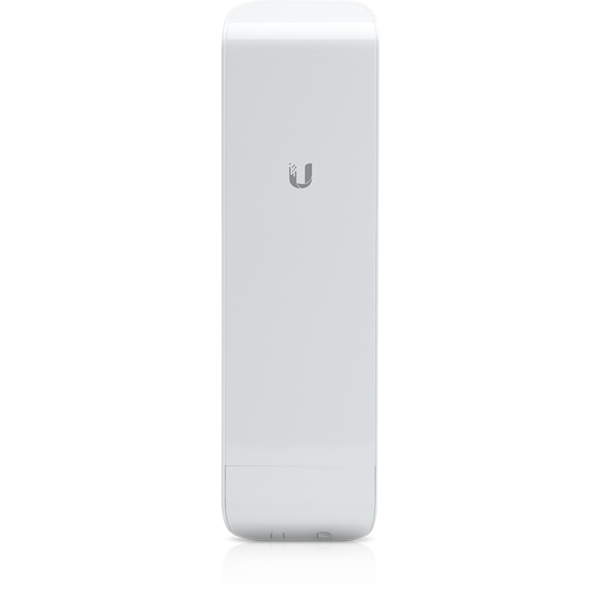

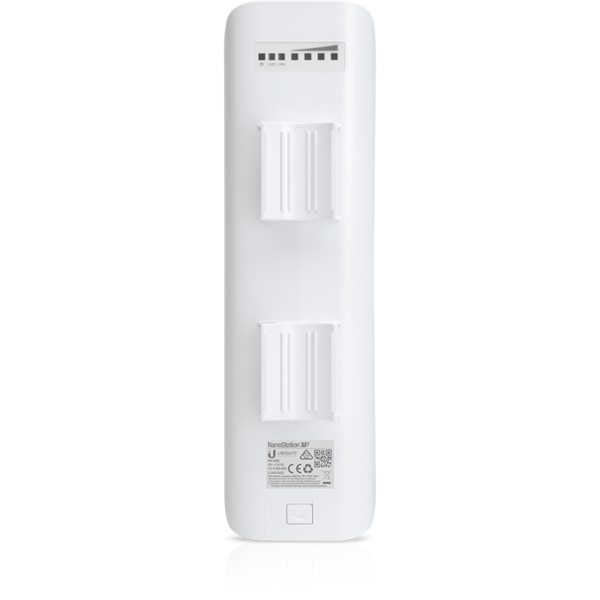

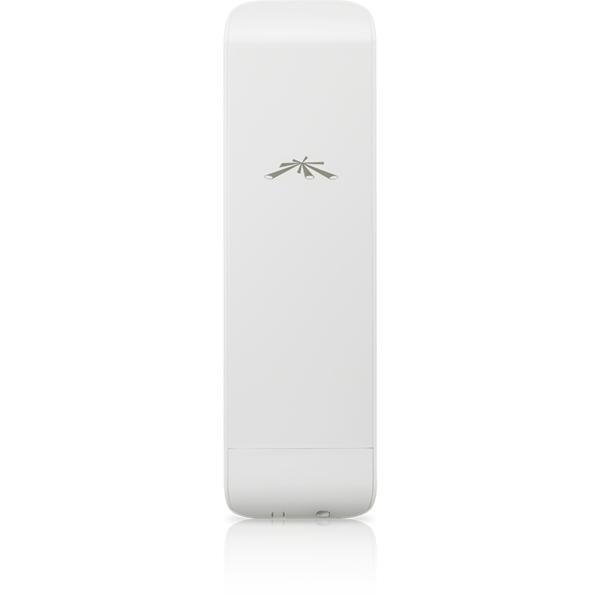

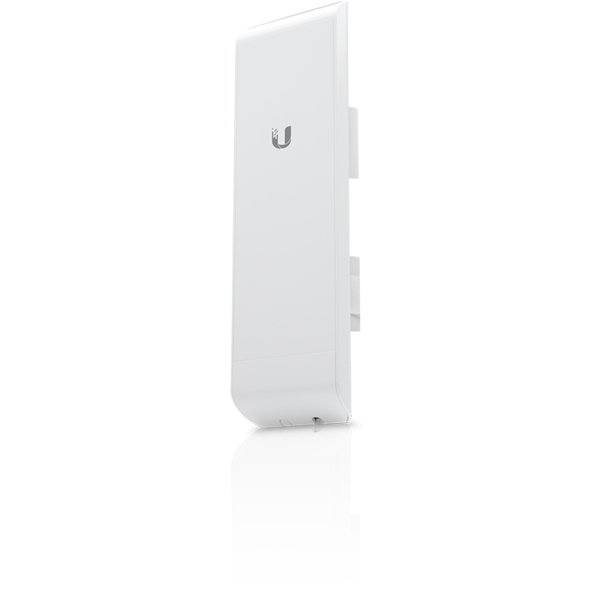

Ubiquiti NSM2, Nanostation M Indoor/Outdoor Radio, 2.4GHz: 150Mbps, 1 Year Warranty
Ubiquiti NSM2-AU
$184.69 inc GST
2 in stock
Stock Availability (LIVE)
- • Brisbane Warehouse ✓ In Stock (2)
- • Sydney Warehouse ✕ Out of Stock (0)
Delays may be experienced from Sydney Warehouse as warehouse is currently changing location.
Call for corporate/edu qty purchases
Same Day Shipping
Order within --:-- for same day dispatch!
Shipping cutoff time: --:--
Ubiquity NSM2, Indoor/Outdoor AirMAX® CPE, NanoStation, 2.4GHz, 150+Mbps Throughput, 13+ KM Range, 1 Year
NanoStation M2: 2.4GHz Hi Power 2x2 MIMO AirMax TDMA Station.
The original NanoStation set the bar for the world's first low-cost and efficiently designed outdoor broadband CPE. The new NanoStation M and NanoStation Loco M take the same concept to the future with new redesigned sleek and elegant form-factors.
150+ Mpbs real outdoor throughput and up to 15km+ range. Featuring 2x2 MIMO technology, the new NanoStation links significantly faster and farther than ever before. New antenna array designs featuring 16dBi dual-polarity gain at 5GHz and 11dBi dual-polarity 11dBi at 2.4GHz. Both with optimized cross-polarity isolation and in a compact form-factor. Secondary ethernet port with software enabled POE output for seamless IP Video integration. Remote hardware reset circuitry of NanoStation M allows for device to be reset remotely from power supply location. In addition, any NanoStation can easily become 802.3af 48V compliant through use of Instant 802.3af adapter.
POE-24-12W included
Compact CPE Design
The NanoStation®M features the CPE design that expanded the global Wireless ISP industry.
Plug and Play Installation
The NanoStation®M requires no tools for assembly; only a single wrench is required for pole-mounting.
Versatile Application Use
The NanoStation®M can be deployed for Point-to-Point (PtP) bridging, wireless connectivity to a video surveillance system, or use as an airMAX® CPE.
Dual Ethernet Connectivity
With software-enabled PoE output, the secondary Ethernet port can power an external device, such as a PoE security camera, for seamless IP video integration.
Powerful airOS® Features
Ubiquiti’s versatile airOS® firmware technology enables high-performance, outdoor multi-point networking. airOS provides features such as wireless settings, bridge or routing configuration and system management services.
Advanced Software Technology
Ubiquiti’s airMAX® technology is proven in millions of deployments worldwide, exhibiting outstanding performance in outdoor environments. The TDMA airMAX protocol enables unprecedented scalability, high throughput and low latency in unlicensed, multipoint networks.
Window/Wall Mounting Kit
Use the NanoStation® Mount to quickly mount the NanoStationM on a window or wall. 180° vertical or horizontal adjustment allows for custom positioning.
Wall/Pole Mounting Kit
The Universal Arm Bracket is designed for convenient wall or pole mounting of the NanoStation®M. 90° tilt adjustment allows for easy positioning.
Additional information
| Dimensions | 10 × 8 × 30 cm |
|---|---|
| Warranty | |
| Brand | |
| Product Link |
| Processor | |
|---|---|
| 0 | Processor manufacturer,Qualcomm |
| 1 | Processor frequency,400 MHz |
| 2 | Processor family,Atheros |
| 3 | Processor model,MIPS 24Kc |
| Weight dimensions | |
|---|---|
| 0 | Depth,31 mm |
| 1 | Height,294 mm |
| 2 | Weight,400 g |
| 3 | Width,80 mm |
| Ports interfaces | |
|---|---|
| 0 | Connectivity technology,Wired & Wireless |
| 1 | Wi-Fi,Y |
| 2 | Ethernet LAN RJ-45 ports,2 |
| 3 | Ethernet LAN,Y |
| Network | |
|---|---|
| 0 | Networking standards,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n,IEEE 802.3,IEEE 802.3af,IEEE 802.3u |
| 1 | Wi-Fi band,Single-band (2.4 GHz) |
| 2 | Top Wi-Fi standard,Wi-Fi 4 (802.11n) |
| 3 | Cabling technology,10/100Base-T(X) |
| 4 | Ethernet LAN data rates,10,100 Mbit/s |
| 5 | Ethernet LAN interface type,Fast Ethernet |
| Power | |
|---|---|
| 0 | Power consumption max,8 W |
| 1 | Power over Ethernet PoE voltage,24 V |
| 2 | Power source type,PoE |
| Technical details | |
|---|---|
| 0 | Material,Plastic |
| 1 | Sustainability compliance,Y |
| Storage | |
|---|---|
| 0 | RAM capacity,32 MB |
| 1 | RAM type,SDRAM |
| Power over Ethernet PoE | |
|---|---|
| 0 | Power over Ethernet PoE,Y |
| Operational conditions | |
|---|---|
| 0 | Operating temperature T-T,-30 - 75 °C |
| 1 | Operating relative humidity H-H,5 - 95% |
| Design | |
|---|---|
| 0 | Product colour,White |
| Antenna | |
|---|---|
| 0 | Antenna gain level max,11.2 dBi |
| Certificates | |
|---|---|
| 0 | Certification,FCC Part 15.247, IC RS210, CE ETSI300-019-1.4 |
| Features | |
|---|---|
| 0 | Flash memory,8 MB |
| 1 | Product type,Network bridge |
| 2 | Mounting type,Pole |
| Mouse | |
|---|---|
| 0 | Frequency band,2.412 - 2.462 GHz |
| Sustainability | |
|---|---|
| 0 | Sustainability certificates,RoHS |
