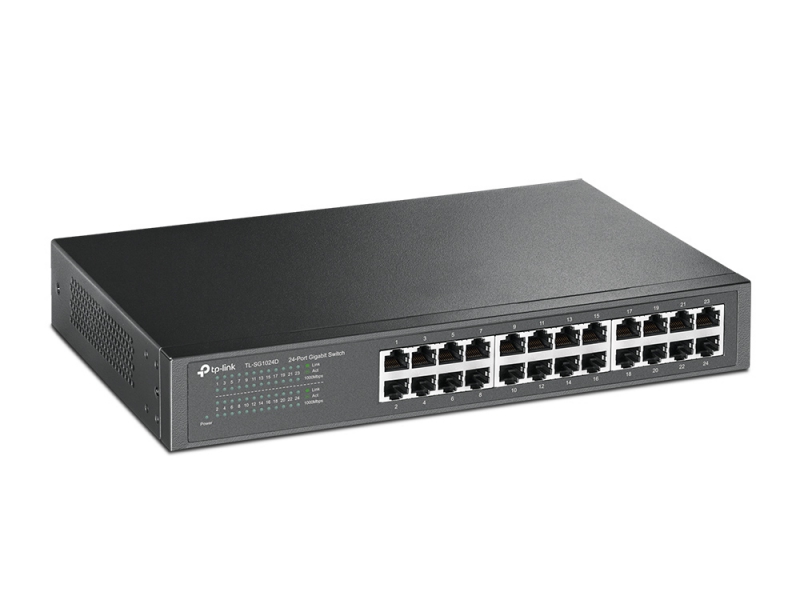

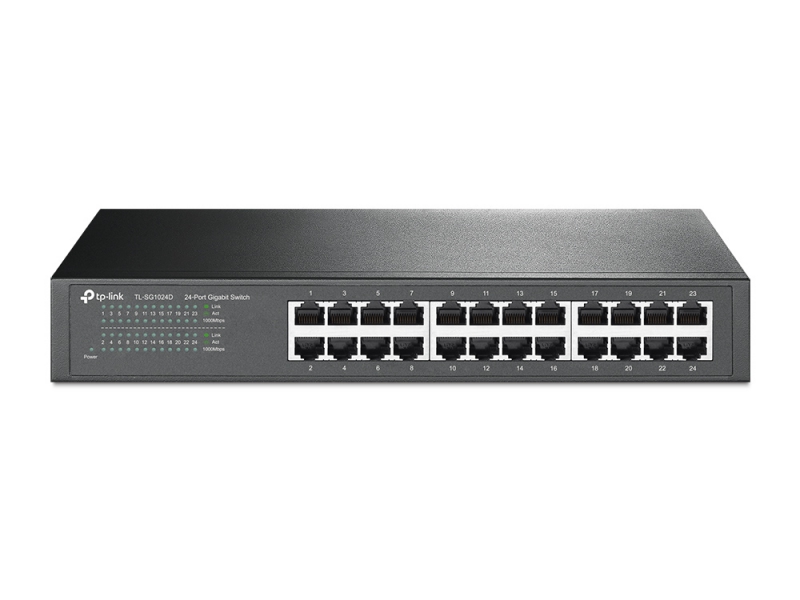

TP-Link TL-SG1024D, 24-port Gigabit Desktop/Rackmount Switch, 3 Year Warranty

PLUG-AND-PLAY SIMPLICITY

The TL-SG1024D requires no configuration and can simply be plugged in and used. Auto MDI/MDI-X cable detection on all ports eliminates the need for crossover cable or uplink ports. Each port can be directly connected to a server, hub, router, or switch using a straight or crossover cable, so there's no confusion about port specificity.

FASTER NETWORK RESPONSE TIMES

With non-blocking switching architecture, the TL-SG1024D greatly improves network response times and significantly speeds up the traffic between subnets by forwarding and filtering packets at full wire speed for maximum throughput.

GO GREEN WITH YOUR ETHERNET

The TL-SG1024D includes green Ethernet technology and power-saving features to help make your network compatible without compromising performance. The switch automatically powers down the ports that are idle and budgets power output for different Ethernet cable lengths.

UNIVERSAL SYSTEM COMPATIBILITY

Compatible with all 10, 100, and 1,000 Mbps Ethernet devices, the TL-SG1024D allows you to protect your existing investments while migrating to a faster network. All ports support full- and half-duplex transfer modes for 10/100 Mbps and full-duplex transfer mode for 1,000 Mbps. The TL-SG1024D also supports IEEE 802.3x flow control for full-duplex mode and backpressure for half-duplex transfer mode.

DIAGNOSTIC LED INDICATORS

Diagnostic LEDs on the front panel display information for power, link/activity, and speed, enabling you to quickly detect and correct problems on the network.

Specifications:
0: Width,294 mm | 1: Depth,180 mm | 2: Height,44 mm
0: AC input frequency,50/60 Hz | 1: Power supply included,Y | 2: Power consumption max,13.08 W | 3: AC input voltage,100 - 240 V | 4: Heat dissipation,44.63 BTU/h
0: Basic switching RJ-45 Ethernet ports quantity,24 | 1: Basic switching RJ-45 Ethernet ports type,Gigabit Ethernet (10/100/1000) | 2: Gigabit Ethernet copper ports quantity,24 | 3: Power connector,DC-in jack
0: Jumbo frames support,Y | 1: Jumbo frames,10000 | 2: Auto-negotiation,Y | 3: Networking standards,IEEE 802.3ab,IEEE 802.3u,IEEE 802.3x | 4: Full duplex,Y | 5: 10G support,N | 6: Cable types supported,Cat3,Cat4,Cat5,Cat5e | 7: Supported network protocols,CSMA/CD, TCP/IP
0: Rack mount kit,Y | 1: User guide,Y | 2: Package type,Box
0: Switching capacity,48 Gbit/s | 1: Forwarding rate,35.7 Mpps | 2: MAC address table,8000 entries | 3: Store-and-forward,Y
0: Switch type,Unmanaged
0: Flow control support,Y
0: Power over Ethernet PoE,N
0: Storage relative humidity H-H,5 - 90% | 1: Operating temperature T-T,0 - 40 °C | 2: Storage temperature T-T,-40 - 70 °C | 3: Operating relative humidity H-H,10 - 90%
0: Product colour,Grey | 1: Rack mounting,Y | 2: Stackable,Y
0: Auto MDIMDI-X,Y
0: Certification,FCC, CE, RoHS
0: LED indicators,Y
0: Cables included,AC
