Alloy SCR460SC-4 RS-232/422/485 Serial Terminal to Single Mode Fibre Converter. Max. range 20Km

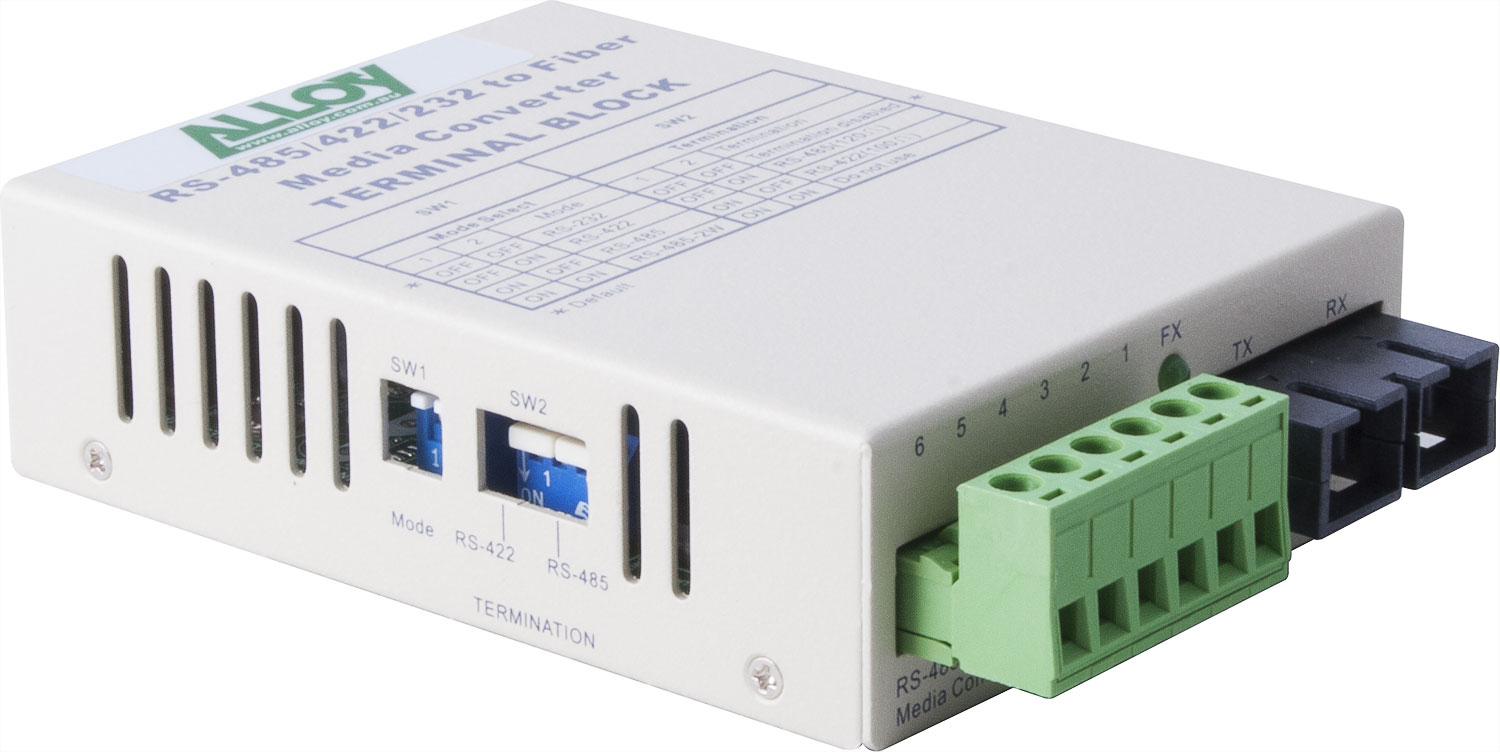

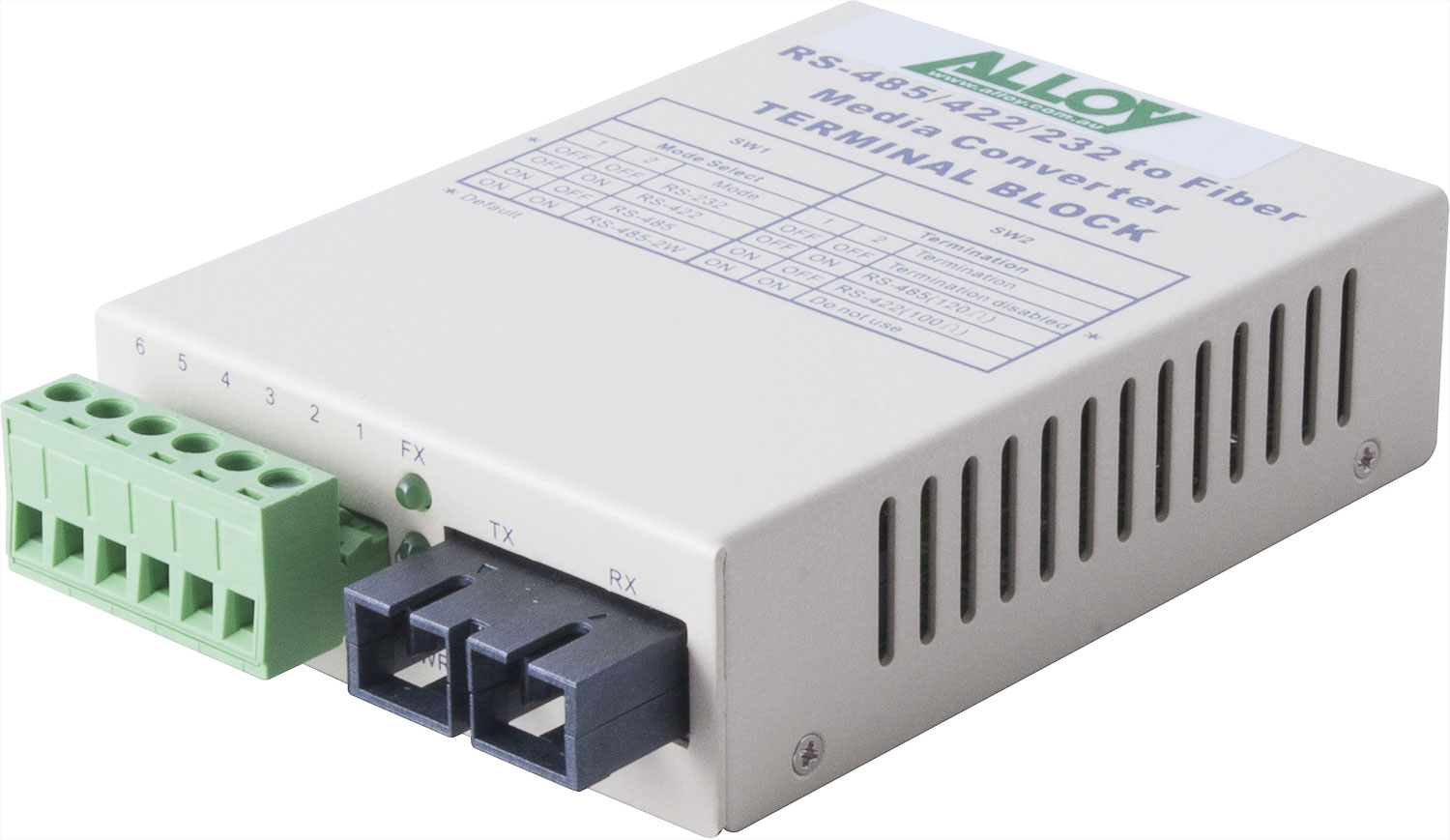

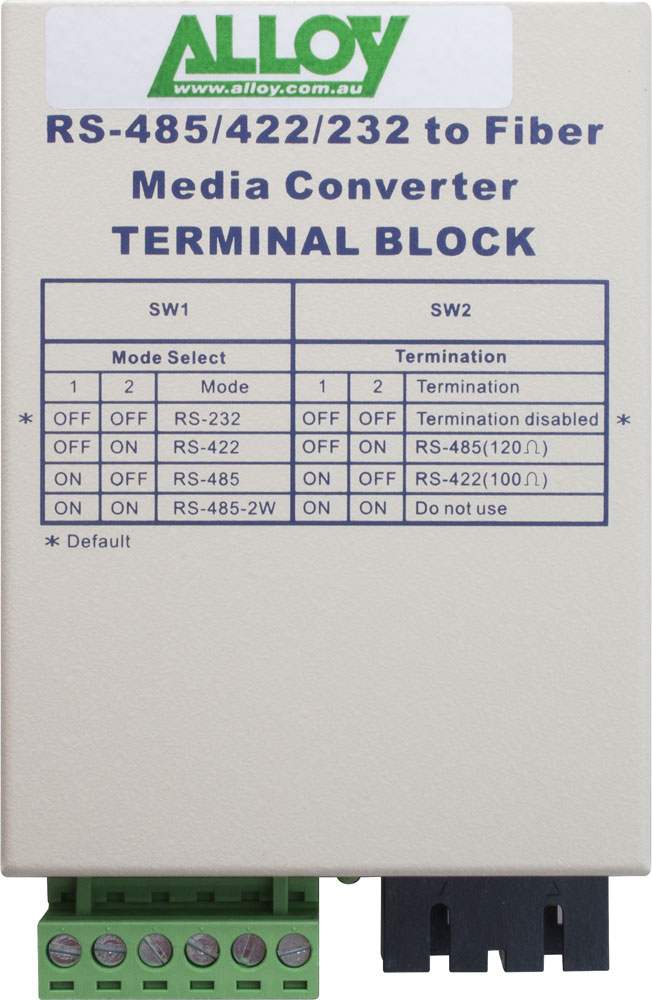

Alloy SCR460SC-4 Serial to Fibre Standalone/Rack Converter

The SCR460ST-4, an SCR Series Media Converter, is used standalone or installed in a DCR12 Series Converter Chassis. This RS232/422/485 Serial to Fibre Converter has a Terminal Block port and a SC terminated singlemode fibre port, 20Km maximum range.

Features:

SCR460SC-4 Converter: RS-232/422/485 serial (Terminal Block) to serial over singlemode fibre (SC) - 20Km range
SCR Series Converters for all types of serial over fibre media conversion - up to 20Km range
DB-9 or Terminal Block options for copper serial cabling, ST or SC fibre connectors
Triple mode circuit support for Plug-and-play RS-232triple mode circuit RS-232/RS-422/RS-485, RS-422 or RS-485
Auto baud rate (up to 460.8K) and Direction Control functions
High EMI and EMS immunity
Dual Purpose ACR Series - use 'standalone' or install in a DCR12 Series Media Converter Chassis
Easy 'Slide-in, Hot Swap' installation into DCR12 Media Converter Chassis systems
Compact, rugged all-metal case
