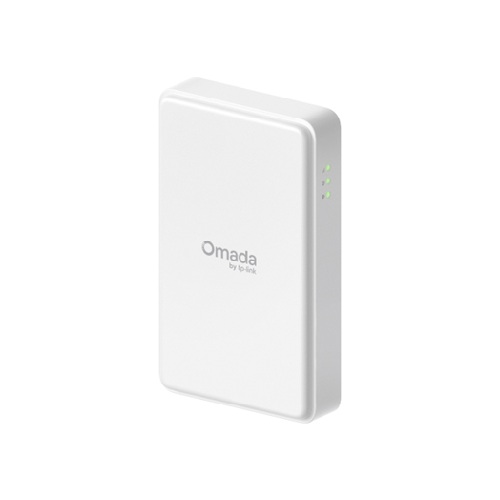

TP-Link ER701-5G Outdoor Omada 5G Gateway with Dual Nano SIM Support, PoE Power Input, 2.5G Ethernet Port, Enterprise Routing, VLAN, Firewall

TP-Link ER701-5G Outdoor Omada 5G Gateway with Dual Nano SIM Support, PoE Power Input, 2.5G Ethernet Port, Enterprise Routing, VLAN, Firewall, and Omada Cloud Management

Device

•Outdoor 5G Gateway / Router

Dual
•Nano SI
•PoE powered
•

Omada-managed

Cellular – 5G NR

•
Bands:

n1 / n3 / n5 / n7 / n8 / n20 / n26 / n28 / n38 / n40 / n41 / n75 / n76 / n77 / n78
•

Frequencies:

700 / 800 / 850 / 900 / 1500 / 1800 / 2100 / 2300 / 2500 / 2600 / 3500 / 3700 MHz

•
SA:

7.01 Gbps ↓ / 1.25 Gbps ↑

•NSA:
4.5 Gbps ↓ / 730 Mbps ↑

Cellular – 4G LTE

•
FDD:

B1 / B3 / B5 / B7 / B8 / B20 / B26 / B28 / B32

•TDD:
B38 / B40 / B41 / B42 / B43
•

Speed:
1.6 Gbps ↓ / 211 Mbps ↑

Cellular – 3G
•

WCDMA:

B1 / B5 / B8

SIM

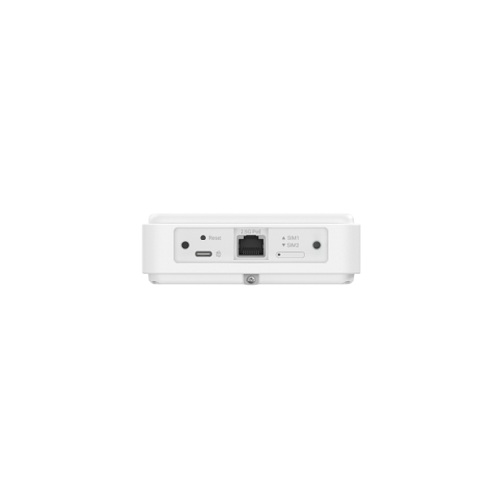

•1 × Dual Nano SIM slot
•

Failover supported

Ethernet

•1 × 2.5G RJ45

•10 / 100 / 1000 / 2500 Mbps

•PoE:

•802.3at (42–57 V, 0.6 A)
•

Passive 48 V

Wireless (Local)

•
2.4 GHz only

•
802.11 b / g / n

•
150 Mbps max
•

WPA / WPA2-Personal

•
1 SSID

•TX power control
•

Auto channel selection
Routing / Switching

•Static routing
•

OSPF (Standalone)
•

Bridge VLAN

•
802.1Q VLAN
•

Multi-Net interfaces

NAT / Firewall
•

Multi-Net NAT
•

Virtual server
•

Port triggering
•

NAT-DMZ

•ALG: FTP / SIP / IPSec / PPTP / H.323
•

UPnP

•Stateful ACL
Storage / Memory

•4 GB eMMC

•2 GB LPDDR4x
Power

Max consumption:
•15.3 W
Physical

Dimensions:
•183 × 110 × 36 mm

•
Wall / pole / window mount
•

Waterproof kit included

Warranty Period: 3-Year
