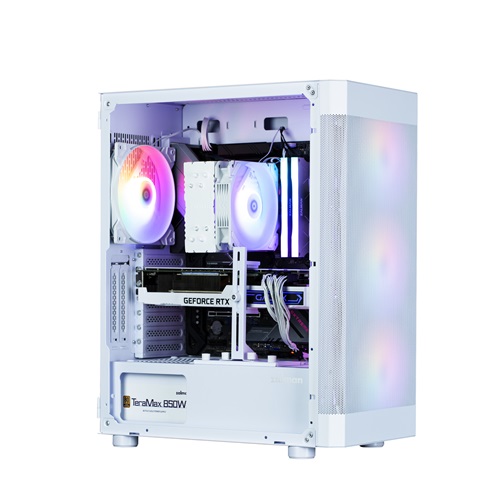

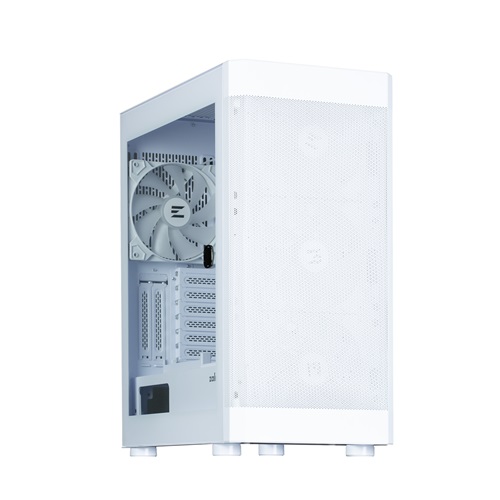

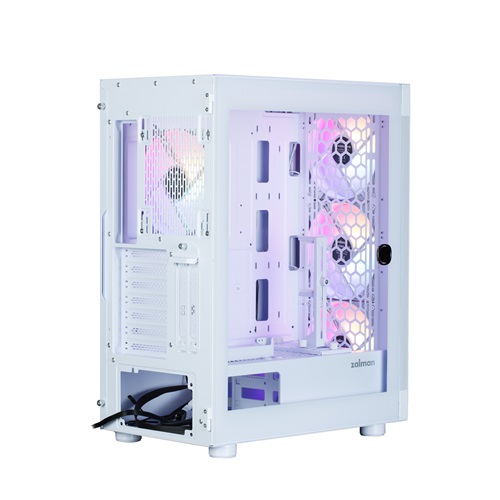

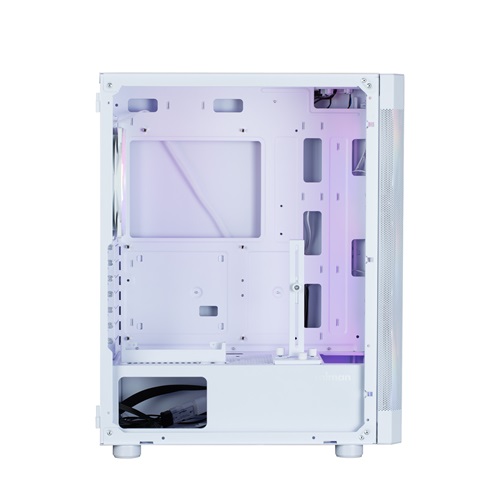

Zalman I4 TG WHITE, Mid-Tower, Tempered Glass, Drive Bays: 2×3.5″(Combo), 2×2.5″, Expansion Slot: 7+2, Motherboard Support: ATX/mATX/Mini-ITX, Pre-Installed Fan: 4x140mm RGB, White, 1 Year Warranty

Full Mesh Side panel Design

Full Mesh Side panel Design

for Optimized Ventilation

optimal airflow with

Clean, Simple and modern

Full Mesh Design

Built-in 140mm x 4 RGB LED Fans

I4 TG comes pre-installed with 4 140mm RGB LED Fans

creating outstanding ventilation with beautiful RGB effects

Front : 3 x 120mm / 3 x 140mm

Top : 2 x 120mm / 2 x 140mm

Rear : 1 x 120mm / 1 x 140mm

Bottom : 2 x 120mm

Two full size magnetic dust filters

(Top & Front) included

Protect your components and provides

unobstructed airflow through

Front/Top/Side Full-size Dust Filter

Magnetic Dust Filter (Top)

Protects your components and

provides unobstructed airflow

Magnetic Dust Filter (Bottom)

Protects your power supply from piling up dust

through dust filteration

Easy accessible design on top I/O ports

ⓐ Power

ⓑ HDD / Power LED

ⓒ Reset Button

ⓓ USB 2.0

ⓔ Microphone Jack

ⓕ Headphone Jack

ⓖ USB 3.0

ⓗ LED Button

Premium Tempered Glass

An edgeless premium tempered glass side panel

provides a panoramic view of your system

* Easy - to - use metal grip

GPU Support Bracket Included

with Height Adjustment

Slides Up and Down to position GPU Precisely

Vertical Graphics Card Holder

(*Riser cable not included)

Note ) Riser cables with 90˚ connectors are not compatible

* For riser cables with 90˚ connectors,

remove the vertical graphic card holder

and use standoffs included in accessories kit

PCI slots x 2 (Vertical Type)

Maximum Airflow and Ventilation

Pre-installed 140mm x 4 fans (Front x 3, Rear x 1) and

optimized ventilation provide quick heat dissipatin

from the case

FRONT / TOP / REAR

(120mm Black Fan)

Rated Voltage : DC 12V

Rated Current : 0.14A

Max. Fan Speed : 900 RPM ± 10%

Max. Fan Air Flow : 72.56 CFM

Max. Fan Noise Level : 26dB(A)

Fan Life Span : 40,000 hours

Fan Bearing Type : Hydraulic Bearing

Radiator Configuration

Front : 120mm / 140mm / 240mm / 280mm / 360mm

Top : 120mm / 140mm / 240mm / 280mm

Rear : 120mm / 140mm

Fan Support

Front : 3 x 120mm / 3 x 140mm

Top : 2 x 120mm / 2 x 140mm

Rear : 1 x 120mm / 1 x 140mm

Bottom : 2 x 120mm

Rear Layout

① Rear Hand Screw

② Rear 140mm Fan (Pre- installed)

③ Rear Panel Handle

④ PCI Slots x 7

⑤ PCI Slots x 2 (Vertical Type)

⑥ PSU Slot
