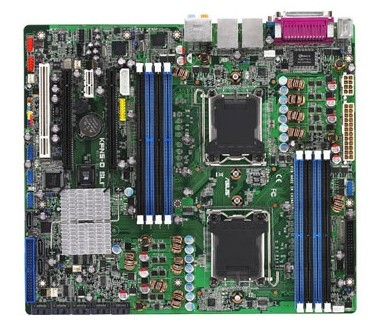

Asus KFN5-D SLI, E-ATX, AMD F 1207, 8xDDR2, SATAII, RAID, 2xPCIe, VGA, 2xGbE LAN, 4xUSB2.0, 2 Year Warranty

* ASUS KFN5-D-SLI M/board - Dual AMD Socket F 1207, nVidia Pro 3600 MCP, HT2000, DDR2 533/667, 2 x PCI-Ex16 (x8 link), SATAII RAID, 2x GbE LAN, E- ATX (KFN5-D SLI)

• Processor / System Bus
  2 * AMD Opteron™ 2000 Series processors
• Core Logic
  nVIDIA nForce Professional 3600 MCP
• Form Factor
  12.0" * 10.5"
• Chassis Support
  N/A
• ASUS Features
  Smart Fan: Smart Fan II
  Rack Ready (Rack and Pedestal dual use):√
  ASWM2.0: √
• Memory
  Total Slots: 8
  Capacity: Maximum up to 32GB
  Memory Type: Dual Channel ECC Reg. DDR2 533/ 667
  Memory Size: 512 MB, 1 GB, 2GB
• Expansion Slots (follow SSI Location #)
  Total Slots: 4 (base on SSI)
  Slot 1: 1 * 32bit / 33MHz PCI
  Slot 2: 1 * PCI-E x 16 (x8 link)
  Slot 3: 1 * PCI-E x 1
  Slot 4: 1 * PCI-E x 16
• Storage
  IDE Controller:
  IDE: Dual Channels Bus Master IDE support UltraATA 100 / 133

  SATA Controller:
  MCP55 Pro:
  6 SATAI/II ports, RAID 0, 1, 0+1, 5, JBOD

  Sil3132:
  2 SATAI /II ports, RAID 0, 1

• Networking
  LAN: 2 x Broadcom® BCM5754 PCI-E Gb LAN
• Graphic
  N/A
• Onboard I/O Connectors
  Floppy Connector: 1
  PSU Connector: SSI 24-pin + SSI 8-pin
  USB Connectors: 3
  Fan Header: 6 * Fan
  SMBus: 1 * SMbus
  Game Port: 1
• Rear I/O Connectors
  External Serial Port: 1
  External USB Port: 4
  IEEE1394: 1 * IEEE1394 (optional)
  Mic/Line-in/Line-out: 1
  RJ-45: 2
  PS/2 KB/Mouse: 1
  S/P DIF Out:
  1 * Optical SPDIF output
  1 * Coaxial SPDIF output
• Management Solution
  Software: ASWM2.0
• Monitoring
  CPU Temperature: V
  FAN RPM: V
• Safety
  N/A
• EMI
  US (FCC, CFR47 Part 15, Class B)
  Europe (CE, EN55022 & EN55024)
• Anti-virus Software
  N/A
• OS Support
  N/A
• Environment
  Operation temperature: 10℃ ~ 35℃
  Non operation temperature: -40℃ ~ 70℃
  Non operation humidity: 20% ~ 90% ( Non condensing)
• Optional Items
  N/A
• Product SKUs
  N/A
