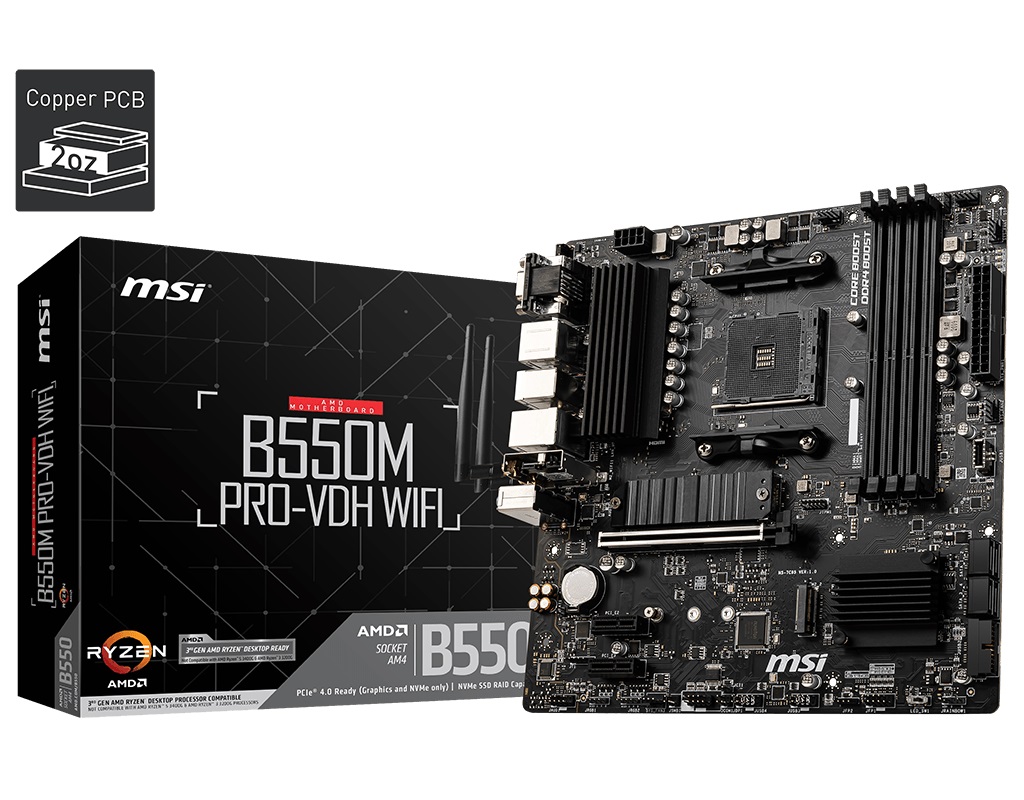

MSI B550M PRO-VDH WIFI, Micro ATX, AMD AM4, 4xDDR4, 2xM.2+4xSATA 6Gb/s, RAID, 3xPCIe, 1xHDMI, 1xDP, 1xD-Sub, GbE LAN, Wireless AC+Bluetooth, 2xUSB2.0, 4xUSB3.0, RGB, 3 Year Warranty

Name: MSI B550M PRO-VDH WIFI, Micro ATX, AMD AM4, 4xDDR4, 2xM.2+4xSATA 6Gb/s, RAID, 3xPCIe, 1xHDMI, 1xDP, 1xD-Sub, GbE LAN, Wireless AC+Bluetooth, 2xUSB2.0, 4xUSB3.0, RGB, 3 Year Warranty
SKU: B550M PRO-VDH WIFI
Availability: InStock

MSI B550M PRO-VDH WIFI

$204.61 inc GST

20 in stock

Stock Availability (LIVE)

• Brisbane Warehouse ✓ In Stock (20+)
• Sydney Warehouse ✕ Out of Stock (0)

Delays may be experienced from Sydney Warehouse as warehouse is currently changing location.

Call for corporate/edu qty purchases

Same Day Shipping

Order within --:-- for same day dispatch!

Shipping cutoff time: --:--

SKU: B550M PRO-VDH WIFI Categories: MBD-SKT-AM4, Motherboards, PC Parts Brand: MSI

Description
Additional information
Specifications

Additional information

Weight	3.2 kg
Warranty	3 Year
Brand	MSI
Product Link	https://www.msi.com/Motherboard/B550M-PRO-VDH-WIFI

Processor
0	Processor manufacturer,AMD
1	Maximum number of SMP processors,1
2	Processor socket,Socket AM4

Weight dimensions
0	Width,244 mm
1	Depth,244 mm

Ports interfaces
0	USB 3.2 Gen 1 3.1 Gen 1 Type-A ports quantity,4
1	VGA D-Sub ports quantity,1
2	USB 2.0 ports quantity,2
3	Wi-Fi standards,802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac)
4	USB 2.0 connectors,2
5	Bluetooth,Y
6	Supported storage drive interfaces,SATA III
7	HDMI ports quantity,1
8	DisplayPorts quantity,1
9	Ethernet LAN,Y
10	Ethernet LAN RJ-45 ports,1
11	Wi-Fi,Y

Memory
0	Non-ECC,Y
1	Unbuffered memory,Y
2	Supported memory clock speeds,1866,2133,2400,2667,2800,2933,3000,3066,3200,3466,3600,3733,3866,4000,4133,4266,4400 MHz
3	Supported memory types,DDR4-SDRAM
4	Number of memory slots,4
5	Memory slots type,DIMM
6	ECC,Y
7	Memory channels,Dual-channel

Network
0	LAN controller,Realtek 8111HN
1	Ethernet interface type,Gigabit Ethernet

Rear panel IO ports
0	WiFi-AP antenna jack,2
1	PS2 ports quantity,1

Internal IO
0	Number of chassis fan connectors,3
1	Serial port headers,1
2	12V power connector,Y
3	RGB LED pin header,Y
4	USB 3.2 Gen 1 3.1 Gen 1 connectors,1
5	Number of SATA III connectors,4
6	ATX Power connector 24-pin,Y
7	CPU fan connector,Y

Expansion slots
0	PCI Express x1 Gen 3.x slots,2
1	PCI Express x16 Gen 4.x slots,1
2	Number of M.2 M slots,2

BIOS
0	Clear CMOS jumper,Y

Other features
0	Audio output channels,7.1 channels

Storage
0	Supported storage drive types,HDD & SSD

Performance
0	Maximum internal memory,128 GB
1	Compatible processor series,3rd Generation AMD Ryzen™ 3, 3rd Generation AMD Ryzen 5, 3rd Generation AMD Ryzen™ 7, 3rd Generation AMD Ryzen™ 9
2	RAID levels,0,1,10
3	Maximum resolution,4096 x 2160 pixels

Graphics
0	Maximum graphics adapter memory,16000 MB
1	Parallel processing technology support,Not supported
2	Maximum graphics card memory,16000 MB

Packaging content
0	Drivers included,Y
1	Cables included,SATA

Features
0	Motherboard chipset family,AMD
1	Number of mounting holes,8
2	Motherboard chipset,AMD B550
3	Audio chip,Realtek ALC892
4	Motherboard form factor,micro ATX
5	Component for,PC

Mouse
0	Bluetooth version,4.2
