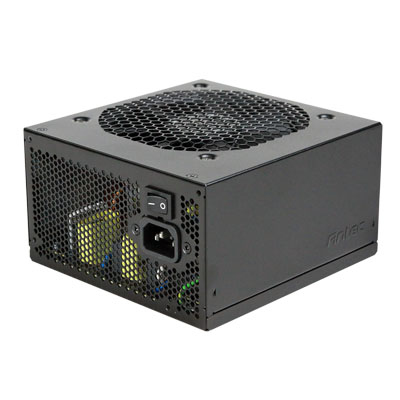

Antec VP650P-PLUS, 650W, 80 Plus, Non-Modular, Fan:120mm, 3 Year Warranty

Name: Antec VP650P-PLUS, 650W, 80 Plus, Non-Modular, Fan:120mm, 3 Year Warranty
SKU: VP650P-PLUS
Availability: InStock

Antec VP650P-PLUS

$105.00 inc GST

2 in stock

Delays may be experienced from Sydney Warehouse as warehouse is currently changing location.

Call for corporate/edu qty purchases

Order within --:-- for same day dispatch!

Shipping cutoff time: --:--

SKU: VP650P-PLUS Categories: PC Parts, Power Supplies, PSU-650W, PSU-ATX Brand: Antec

Additional information

Power
0	AC input frequency,47 - 63 Hz
1	Power protection features,Battery discharge, Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
2	Power consumption max,648 W
3	Total power,650 W
4	Combined power 5Vsb,15 W
5	Max output current 3.3V,20 A
6	Max output current 12V1,35 A
7	Max output current 12V2,35 A
8	Power Factor Correction PFC type,Active
9	Max output current 5V,20 A
10	Combined power 3.3V,120 W
11	Max output current -12V,0.5 A
12	Combined power 5V,120 W
13	Max output current 5Vsb,3 A
14	Combined power -12V,6 W
15	AC input voltage,100 - 240 V
16	Power plug type,Type C

Ports interfaces
0	Floppy drive power connector,1
1	Motherboard power connector,20+4 pin ATX
2	PCI Express power connectors 62 pin,4
3	CPU power connector 44 pin,Y
4	ATX power connector 204 pin,Y
5	Number of SATA power connectors,5

Internal IO
0	Peripheral Molex power connectors 4-pin,3

Other features
0	Voltage tolerance,10%
1	Manual,Y

Mouse
0	Onoff switch,Y

Operational conditions
0	Operating temperature T-T,0 - 50 °C

Performance
0	Purpose,PC
1	80 PLUS certification,80 PLUS Bronze
2	Power supply unit PSU form factor,ATX
3	ATX version,2.4
4	EPS version,2.92

Certificates
0	Certification,FCC, Ul, cUL, CB, CE, TUV, BSMI, CCC, RCM, Gost-R, KCC, ErP Lot 6

Packaging data
0	Package type,Box

Sustainability
0	Sustainability certificates,RoHS
