Gigabyte GP-UD1600PM PG5 AI TOP Power Supply, 1600W, ATX12V, 80 PLUS Platinum Fan, Type 140mm Double Ball Bearing fan >100,000 hours, 3 years

Gigabyte GP-UD1600PM PG5 AI TOP Power Supply, 1600W, ATX12V, 80 PLUS Platinum Fan, Type 140mm Double Ball Bearing fan >100,000 hours, 3 years warranty

SPECIFICATION
Model GP-UD1600PM PG5
Type Intel Form Factor ATX 12V v3.1
PFC Active PFC (>0.9 typical)
Input Voltage 100-240 Vac (full range)
Input Current 15-7.5A
Input Frequency 60-50 Hz
Output Capacity 1600W
Dimension 150 x 190 x 86mm

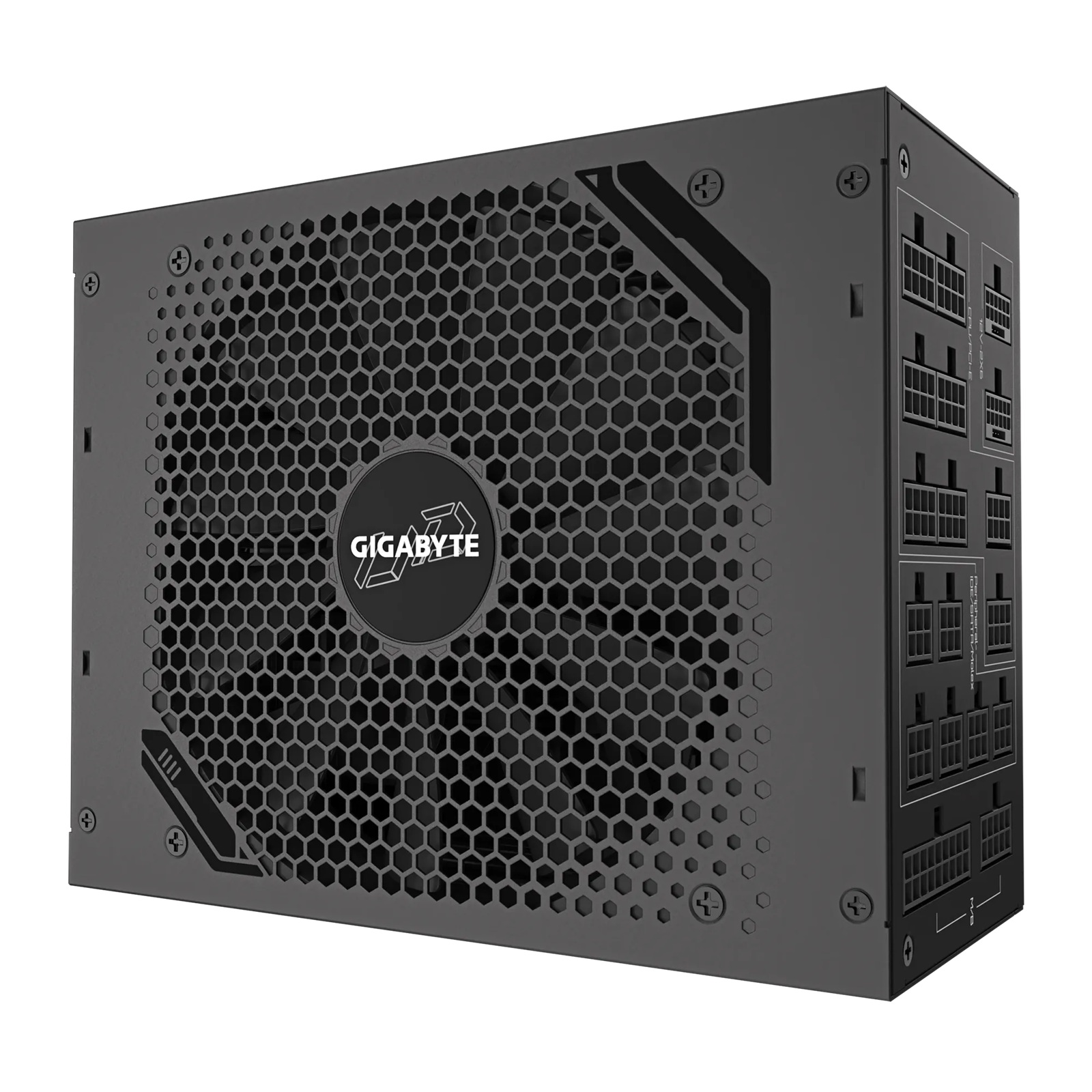

Fan Type 140mm Double Ball Bearing fan
80 PLUS Platinum
Efficiency 92% at typical load
MTBF >100,000 hours
Protection OVP/OPP/SCP/UVP/OCP/OTP
Power Good Signal 100-150ms
Hold Up Time >16ms
Cable Type Flat, All black

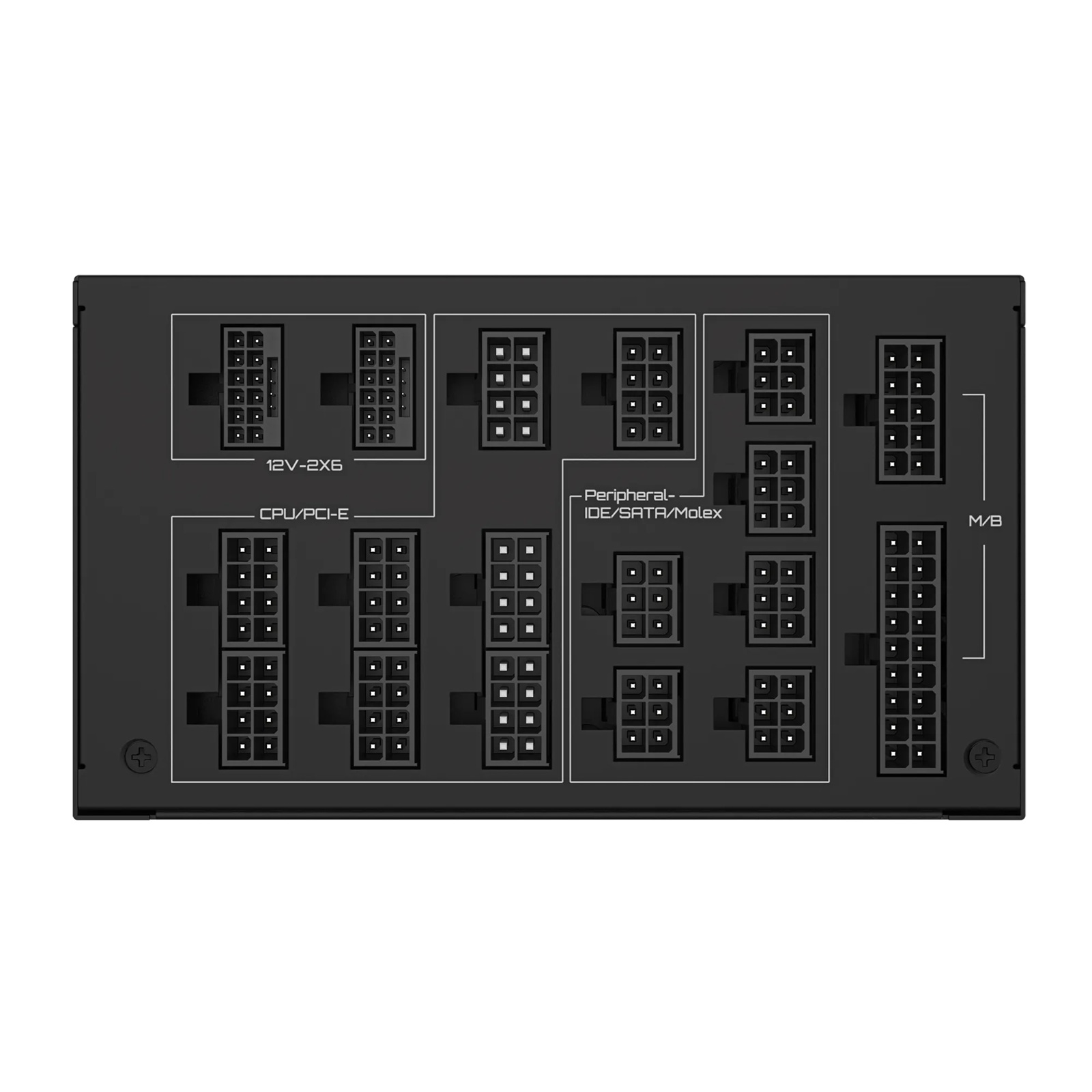

Connectors
ATX/MB 20+4 Pin x 1 : 610mm*1
CPU/EPS 4+4 Pin x 2 : 650mm*2
PCI-E 16 Pin x 2 : 700mm*2
PCI-E 16 Pin to PCI-E 8 pin x 2 : 700mm*2
PCI-E 6+2 Pin x 8 : 650mm+150mm*4
SATA x 16 : 650mm+150mm+150mm+150mm*4
4 Pin Peripheral x 6 + 4 Pin floppy x 2 : 600mm+150mm+150mm+150mm*2
