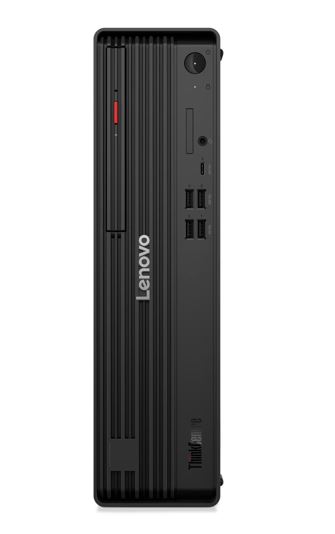

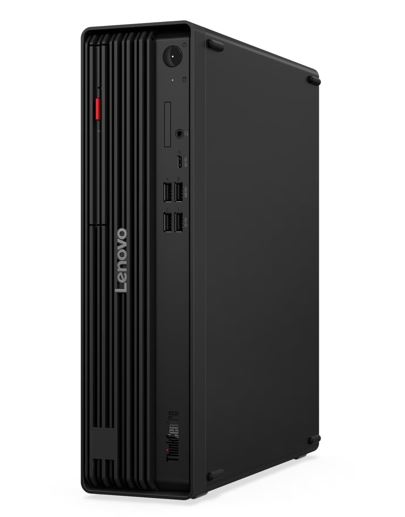

LENOVO ThinkCentre M70S G6 SFF Desktop PC Intel U5-225 16GB DDR5 512GB SSD Windows 11 Pro 3YR OS Intel UHD GPU WIFI7 BT Keyboard Mouse

LENOVO ThinkCentre M70S G6 SFF Desktop PC Intel U5-225 16GB DDR5 512GB SSD Windows 11 Pro 3YR OS Intel UHD GPU Keyboard Mouse

PERFORMANCE
Processor Intel® Core Ultra 5 225, 10C (6P + 4E) / 10T, Max Turbo up to 4.9GHz, 20MB Intel Smart Cache
AI PC Category AI PC
NPU Integrated Intel® AI Boost, up to 13 TOPS
Graphics Integrated Intel® Graphics
Chipset Intel® Q870 Chipset
Memory 2x 8GB UDIMM DDR5-5600
Memory Slots Four DDR5 UDIMM slots, dual-channel capable
Max Memory Up to 128GB DDR5
Storage 512GB SSD M.2 2280 PCIe® 4.0x4 NVMe® Opal 2.0
Max Storage Support Up to four drives, 1x 3.5' HDD + 1x 2.5' HDD + 2x M.2 SSD
• 3.5' HDD up to 2TB
• 2.5' HDD bay is only for customer self upgrade
• M.2 SSD up to 2TB each (2.5'' HDD bay is optional part, only for customer self upgrade purpose and the hard drive is sold separately)
RAID Preset None
Card Reader None
Optical None
Audio Chip High Definition (HD) Audio, Realtek® ALC623-CG codec
Speakers 1Wx1
Power Supply 200W 90%
DESIGN
Keyboard USB Traditional Keyboard, Black, English
Mouse USB Calliope Mouse, Black
Optional Bay None
Expansion Slots One PCIe® 4.0 x16, low-profile, length ≤ 155mm, height ≤ 70mm
Two PCIe® 3.0 x1, low-profile, length ≤ 155mm, height ≤ 70mm
Three M.2 slots (one for WLAN, two for SSD)
Case Color Black
Stand None
Dust Filter None
Pen Pen Not Supported
Form Factor SFF (8.2L)
Dimensions (WxDxH) 92.5 x 299.7 x 339.5 mm (3.6 x 11.8 x 13.4 inches)
Weight 5.1 kg (11.2 lbs, maximum configuration)
CONNECTIVITY
WLAN + Bluetooth Realtek® Wi-Fi® 7 RTL8922AE, 802.11be 2x2 + BT5.4
WWAN Non-WWAN
Ethernet Integrated 100/1000M
Front Ports 1x USB-C® (USB 5Gbps / USB 3.2 Gen 1), with 15W charging
2x USB-A (USB 5Gbps / USB 3.2 Gen 1)
2x USB-A (USB 10Gbps / USB 3.2 Gen 2)
1x headphone / microphone combo jack (3.5mm)
Rear Ports 4x USB-A (USB 5Gbps / USB 3.2 Gen 1)
1x HDMI® 2.1 TMDS
2x DisplayPort™ 1.4a (HBR3, DSC)
1x Ethernet (RJ-45)
1x line-out (3.5mm)
Optional Rear Ports (configured) None
SECURITY & PRIVACY
Security Chip Discrete TPM 2.0, TCG certified, FIPS 140-2 certified
Fingerprint Reader No fingerprint reader
Physical Locks Kensington® Security Slot™, 3 x 7 mm
Padlock Loop
Smart Cable Clip None
Chassis E-Lock None
Chassis Intrusion Switch None
MANAGEABILITY
System Management Non-vPro®
SERVICE
Base Warranty 3-year, Onsite
Included Upgrade None
CERTIFICATIONS
Green Certifications ENERGY STAR® 9.0
TCO Certified 10
ErP Lot 3
GREENGUARD®
RoHS compliant
Mil-Spec Test MIL-STD-810H military test passed (Low Pressure [Altitude], High Temperature, Low Temperature, Temperature Shock, Humidity, Sand and Dust, Vibration, Shock, Solar Radiation, Contamination by Fluids, Salt Fog)
SOFTWARE
Operating System Windows® 11 Pro, English
