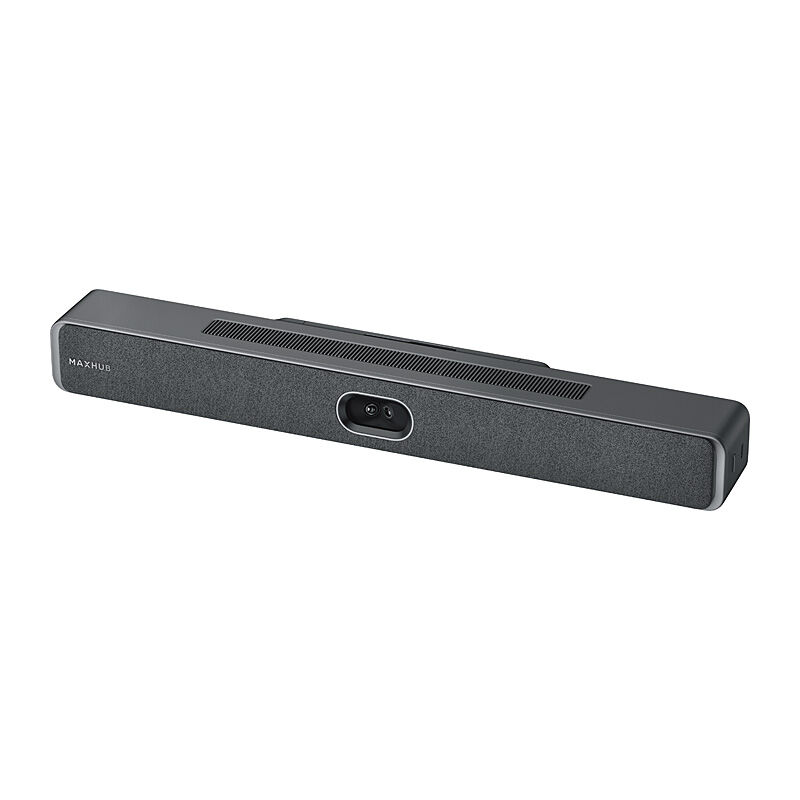

MAXHUB Xbar V50 MS Videobar

Additional information

Features

• 100MP Camera System: Dual-lens camera with 125° HFOV. Ultra-high-resolution camera system redefines image clarity and spatial adaptability
• BYOD Mode: Connect to your PC with a single USB cable for BYOD meeting
• AI-Powered Technology: Auto Framing, Speaker Tracking, Smart Gathering, Intelligent Focus
• AI Noise Reduction: Built-in 12 MEMS microphone array with AI noise reduction
• Studio-Grade Dual Speakers: Dual 15W, Stereo Sound, Full Frequency
• Cloud Device Management: Remotely monitor device status through cloud-based service (MAXHUB Pivot) via an internet connection

Specifications

Package Contents

• XBar V50 (With Standard Accessories) × 1
• Panel AP30 (With Accessories) × 1

Environmental Condition

• Operating Temperature: 0°C ~ 40°C / 0°F ~ 104°F
• Storage Temperature: -20°C ~ 60°C / -4°F ~ 140°F
• Operating Humidity: 10% ~ 90% RH
• Storage Humidity: 10% ~ 90% RH
• Altitude: Below 5000 m

Physical Specification

• Package Dimensions (L×W×H): 770 × 257 × 275 mm / 30.3 × 10.1 × 10.8 in
• Gross Weight: 9.98 kg / 22.0 lb

Content Sharing

• Teams (In Meeting): 1080p@30
• Local Sharing (Type-C): 4K@30
• Local Sharing (HDMI): 4K@30

Device Management

• Microsoft Device Management Platform (Teams Admin Center / Intune / Pro Management Portal)
• MAXHUB Pivot

XBar V50

Operating System

• MDEP Supported
• Android 13

Camera

• Camera Quantity: 2
• Pixel: 50MP × 2
• Sensor: 1/1.55 inch
• Aperture: F/2.4
• Resolution & Frame Rate:
  • H.264 / MJPEG: 3840×2160, 2560×1440, 1920×1080, 1280×720, 1024×576, 960×540, 800×600, 640×360
  • YUY2: 1920×1080, 1280×720, 640×360
• Zoom: 6x Digital Zoom
• Field of View: 130° (D), 125° (H), 50° (V)
• Privacy Shutter: Electric and automatic lens shutter

AI Features (Camera)

• Auto Framing
• Speaker Tracking
• Intelligent Focus
• Smart Gathering
• Video Fence
• Audio Fence

Input/Output Ports

• USB 3.0 Type-B × 1 (PC connection)
• USB 2.0 Type-A × 1 (debug/update)
• HDMI Out × 2 (up to 4K@60Hz, CEC supported)
• HDMI In × 1 (up to 4K@60Hz)
• Audio In × 1 (third-party input)
• Audio Out × 1 (third-party output)
• RJ45 (Internet) × 1
• RJ45 (M Link) × 1 (expansion device)
• DC In × 1 (19V power supply)

Power Adapter

• AC Input: 100–240 V
• DC Output: 19V / 4.5A

Audio

Speaker

• Quantity: 2
• Sound Channel: 2.0
• Total Power: 15W + 15W
• Max Sound Pressure: 83 dB SPL@1W/1M
• Frequency Range: 80 Hz ~ 20 KHz

Microphone

• Quantity: 12-mic array
• Pickup Range: 8 m
• Frequency Range: 20 Hz ~ 16 KHz
• Sensitivity: -36 ± 1 dBFS
• Sampling Rate: 48 KHz
• Expansion: Supports 2 expansion microphones

AI Features (Audio)

• Noise Reduction
• Echo Cancellation
• Anti-Reverberation
• AEC (Acoustic Echo Cancellation)
• ANS (Automatic Noise Suppression)
• AGC (Automatic Gain Control)
• Full-duplex

Standard Accessories

• Power Adapter × 1
• AC Cable (1.5 m / 4.9 ft) × 1
• HDMI Cable (3 m / 9.8 ft) × 2
• Ethernet Cable (3 m / 9.8 ft) × 1
• Mounted Components (ADA Standard) × 1

Physical Specification

• Product Dimensions (L×W×H): 650.8 × 76.6 × 95.7 mm / 25.6 × 3.01 × 3.77 in
• Package Dimensions (L×W×H): 750 × 136 × 246 mm / 29.5 × 5.4 × 9.7 in
• Net Weight: 2.8 kg / 6.17 lb
• Gross Weight: 6.0 kg / 13.23 lb

Network

• Wi-Fi: Wi-Fi 6, 2×2 MIMO
• Wi-Fi Protocol: 802.11 a/b/g/n/ac/ax
• Working Band: 2.4 GHz + 5 GHz
• Bluetooth: 5.2 + BLE
• Network Speed: 1000 Mbps

Panel AP30

Display

• Size: 11.6 inch
• Resolution: 1920 × 1080
• Refresh Rate: 60 Hz
• Backlight Unit: ELED
• Brightness With Glass: 250 nits (Min.), 300 nits (Max.)
• Life Time: ≥ 20000 hours

Touch System

• Type: Capacitive touch
• Surface Treatment: Anti-fingerprint, Anti-glare

Sensor

• Motion Sensor: PIR sensor for automatic wake-up

Accessories

• Type-C Cable (1.5 m / 4.92 ft) × 1
• Ethernet Cable (7.5 m / 24.61 ft) × 1
• Screwdriver × 1
• Power Adapter × 1
• AC Cable (1.5 m / 4.9 ft) × 1

Input/Output Ports

• RJ45 (INTERNET) × 1
• RJ45 (EXT) × 1
• DC In × 1
• Type-C (INGEST) × 1
• USB 2.0 (Pairing Wireless Dongle) × 1

Power

• Power Input: 19V DC 4.5A
• Power Output: Type-C PD 65W (Max.)

Physical Specification

• Product Dimensions (L×W×H): 278 × 164 × 82 mm / 11 × 6.4 × 3.2 inch
• Product Weight: 1.16 kg / 2.56 lb
• Package Dimensions (1 pcs): 570 × 246 × 101 mm
• Package Dimensions (4 pcs): 590 × 440 × 280 mm
• Package Weight (1 pcs): 3.12 kg

Operating System

• MDEP Supported
• Android 13
