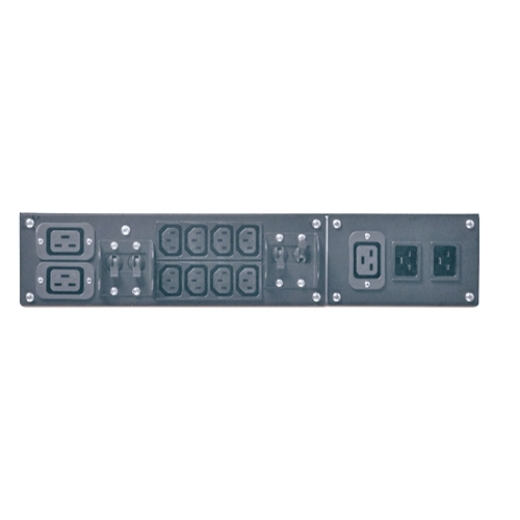

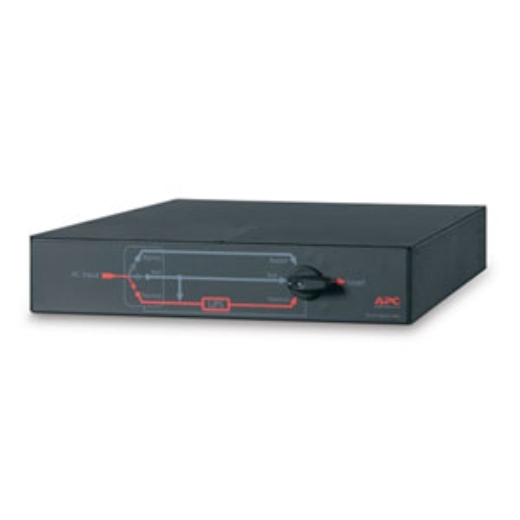

APC Service Bypass Panel- 230V; 50A; MBB; IEC320 C20/HW input; IEC-320 Output- (2) C19 (8) C13

APC Service Bypass Panel- 230V, 32A, MBB, IEC320 C20/HW input, IEC-320 Output- (2) C19 (8) C13

Main Input Voltage 230 V
Main Output Voltage 230 V
Input Connection Type IEC 60320 C20
Number of rack unit 2U
Number of cables 1
Provided equipment Hardwire panel
Installation guide Rack mounting brackets, User manual, Wall mounting brackets
Network frequency 50/60 Hz
Number of input connectors 1 hard wire 3-wire (1P + N + E)
Max line current 32 A
Input current limits 32 A
Load capacity 7680 VA
Power factor 0…1
Max current draw 32 A
Number of power socket outlets 8 IEC 60320 C13, 2 IEC 60320 C19
Protection type Circuit breaker
Efficiency 99 %
Product certifications- CSA, GOST
Standards- EN/IEC 62040-1:2019/A11:2021, EN/IEC 62040-2:2006/AC:2006, EN/IEC 62040-2:2018
Ambient air temperature for operation -20…50 °C
Relative humidity 0…95 %
Operating altitude 0...15000 ft
Ambient air temperature for storage -25…65 °C
Storage Relative Humidity 0…95 %
Storage altitude 0.00…15240.00 m

Mounting mode- Rack mounted
