CP PFC Sinewave Series 1600VA

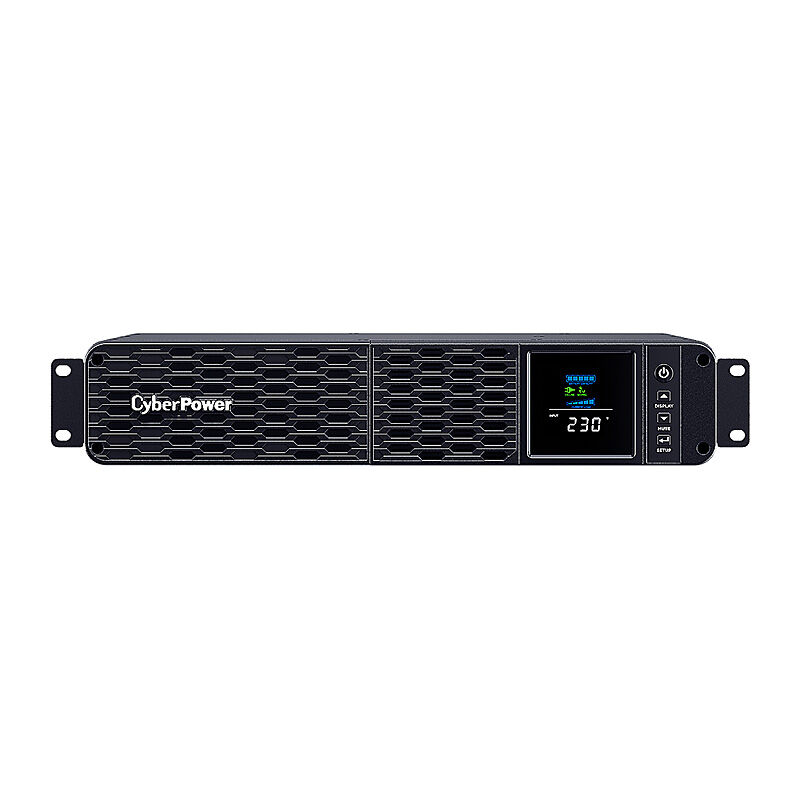

CP PFC Sinewave Series 1600VA - Image 2

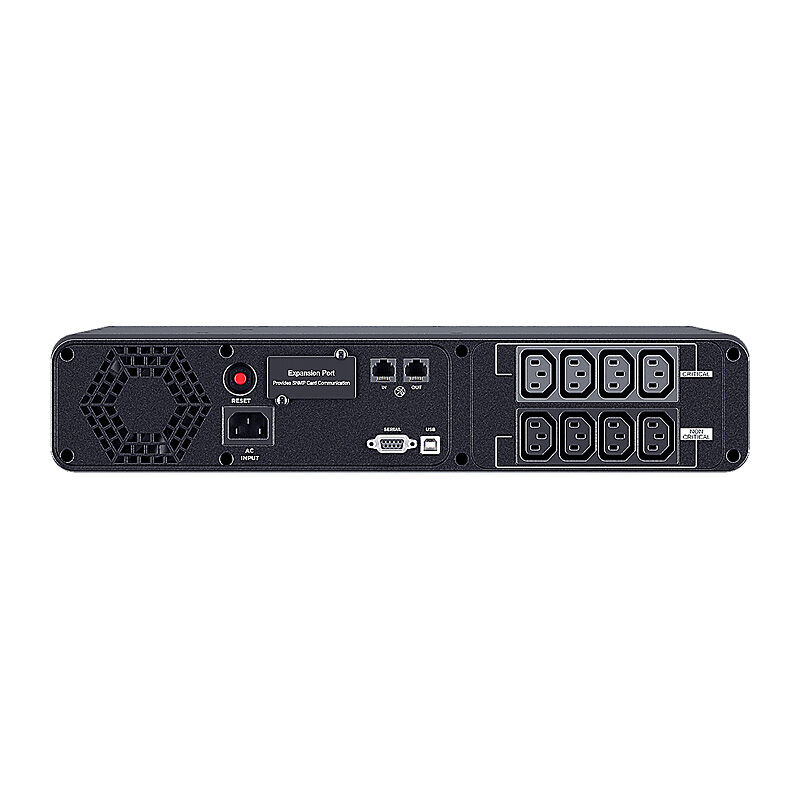

CP PFC Sinewave Series 1600VA - Image 3

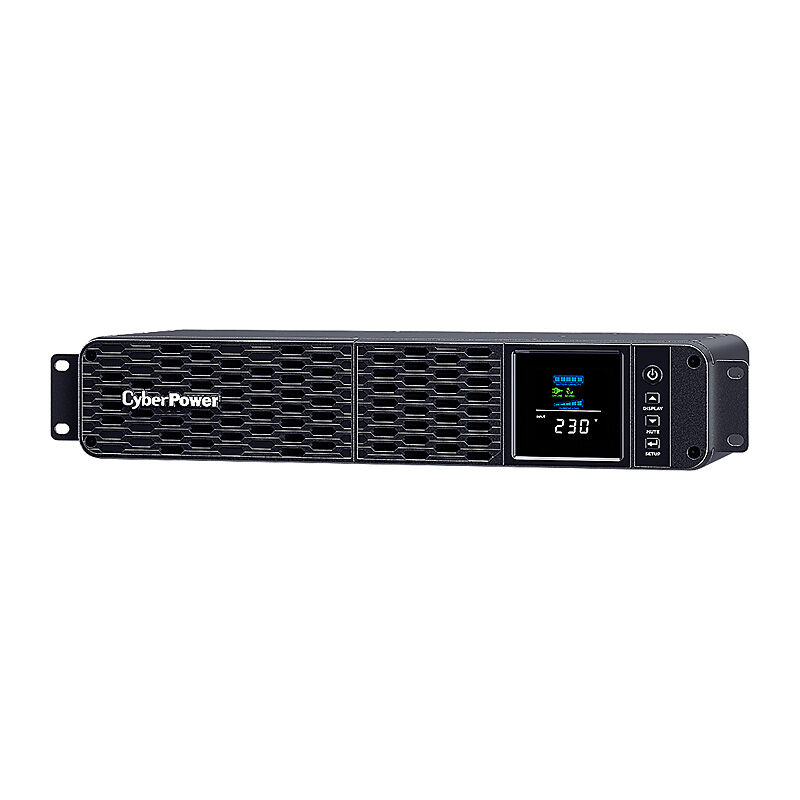

CP PFC Sinewave Series 1600VA

$993.88 inc GST

Out of stock

Stock Availability (LIVE)

  • • Brisbane Warehouse ✕ Out of Stock (0)
  • • Sydney Warehouse ✕ Out of Stock (0)
  • • VIC Warehouse ✕ Out of Stock (0)
  • • WA Warehouse ✕ Out of Stock (0)
  • • SA Warehouse ✕ Out of Stock (0)

Delays may be experienced from Sydney Warehouse as warehouse is currently changing location.

Call for corporate/edu qty purchases

Same Day Shipping

Order within --:-- for same day dispatch!

Shipping cutoff time: --:--

SKU: CP1600EIPFCRM2U Category:

CyberPower Systems PFC Sinewave Series 1600VA / 1000W Tower UPS - 2U -6x IEC C13 (2x Surge Protection only) 12V/9Ah*2 2 Yrs Adv. Replacement WTY Incl. internal Batteries

Additional information

Brand

Features

  • Line-interactive UPS Topology
  • Active PFC Compatible
  • Automatic Voltage Regulation (AVR)
  • Critical/Non-critical Load Outlets
  • Color LCD Panel
  • USB Connectivity Port
  • PowerPanel Management Software
  • Surge and Spike Protection
  • Network Protection
  • Energy Saving Technology
  • Pure Sine Wave Output
  • Overload Protection
  • Hot-swappable Batteries
  • LED Status Indicator
  • High-speed Ethernet Data Transmission
  • SNMP/HTTP Remote Management Capability (Optional)
  • EMI and RFI Filtration
  • Short-depth Chassis Design

Specifications

General

  • Phase: Single Phase
  • Form Factor: Rackmount
  • UPS Topology: Line-interactive
  • Energy Saving Technology: GreenPower UPS™ Bypass Technology
  • Active PFC Compatibility: Yes

Input

  • Nominal Voltage: 230 Vac
  • Voltage Range: 169 ~ 271 Vac
  • Frequency: 50 ± 3 Hz / 60 ± 3 Hz
  • Frequency Detection: Auto-sensing
  • Rated Current: 10 A
  • Connector Type: IEC C14
  • Detachable Power Cord: IEC C14 x 1
  • Cord Length: 6 ft / 1.8 m

Output

  • Capacity: 1600 VA / 1000 W
  • Waveform: Pure Sine Wave
  • Voltage: 230 ± 5 %
  • Frequency: 60 ± 1% / 50 ± 1%
  • Power Factor: 0.625
  • AVR: Single Boost
  • Overload Protection: Internal Current Limiting, Circuit Breaker
  • Total Outlets: 8 (IEC C13 x 8)
  • Battery & Surge Protected: 8
  • Critical Load Outlets: 4
  • Non-critical Load Outlets: 4

Battery

  • Runtime: 10.4 min (Half Load), 2.5 min (Full Load)
  • Recharge Time: 8 hours (to 90%)
  • User-replaceable / Hot-swappable: Yes
  • Battery Type: Sealed Lead-acid
  • Battery Cartridge: RBP0166 (x1)

Protection & Network

  • Surge Suppression: 900 Joules
  • EMI/RFI Filtration: Yes
  • Network Protection RJ45: 1-in, 1-out

Management & Indicators

  • LCD Panel: Color LCD (Power, Battery, Load, Fault & Warning)
  • LED Indicators: Power On
  • USB Port: HID Compliant (x1)
  • Audible Alarms: Battery Mode, Low Battery, Overload, UPS Fault
  • Management Cables: Power Cord x1, USB Cable x1
  • Ethernet Speed: Up to 1Gbps
  • Power Management Software: PowerPanel Business (Recommended)
  • SNMP/HTTP Remote Monitoring: Yes (Optional RMCARD205)
  • PowerPanel Cloud Service: 90 Days Free Trial

Physical

  • Enclosure: Plastic, Black, Rackmount Ears Included
  • Dimensions (WxHxD): 433 x 86 x 274 mm
  • Weight: 12.56 kg
  • Shipping Dimensions: 523 x 162 x 374 mm
  • Shipping Weight: 13.92 kg

Environmental

  • Operating Temperature: 0 ~ 40 °C (32 ~ 104 °F)
  • Operating Humidity: 0 ~ 95% (Non-condensing)
  • Operating Elevation: 0-3,000 m (0-9,843 ft)
  • Storage Temperature: -15 ~ 45 °C (5 ~ 113 °F)
  • Storage Humidity: 0 ~ 95% (Non-condensing)
  • Storage Elevation: 0-15,000 m (0-49,213 ft)
  • Thermal Dissipation: 20.5 BTU/hr

Certifications

  • CE
  • RoHS
